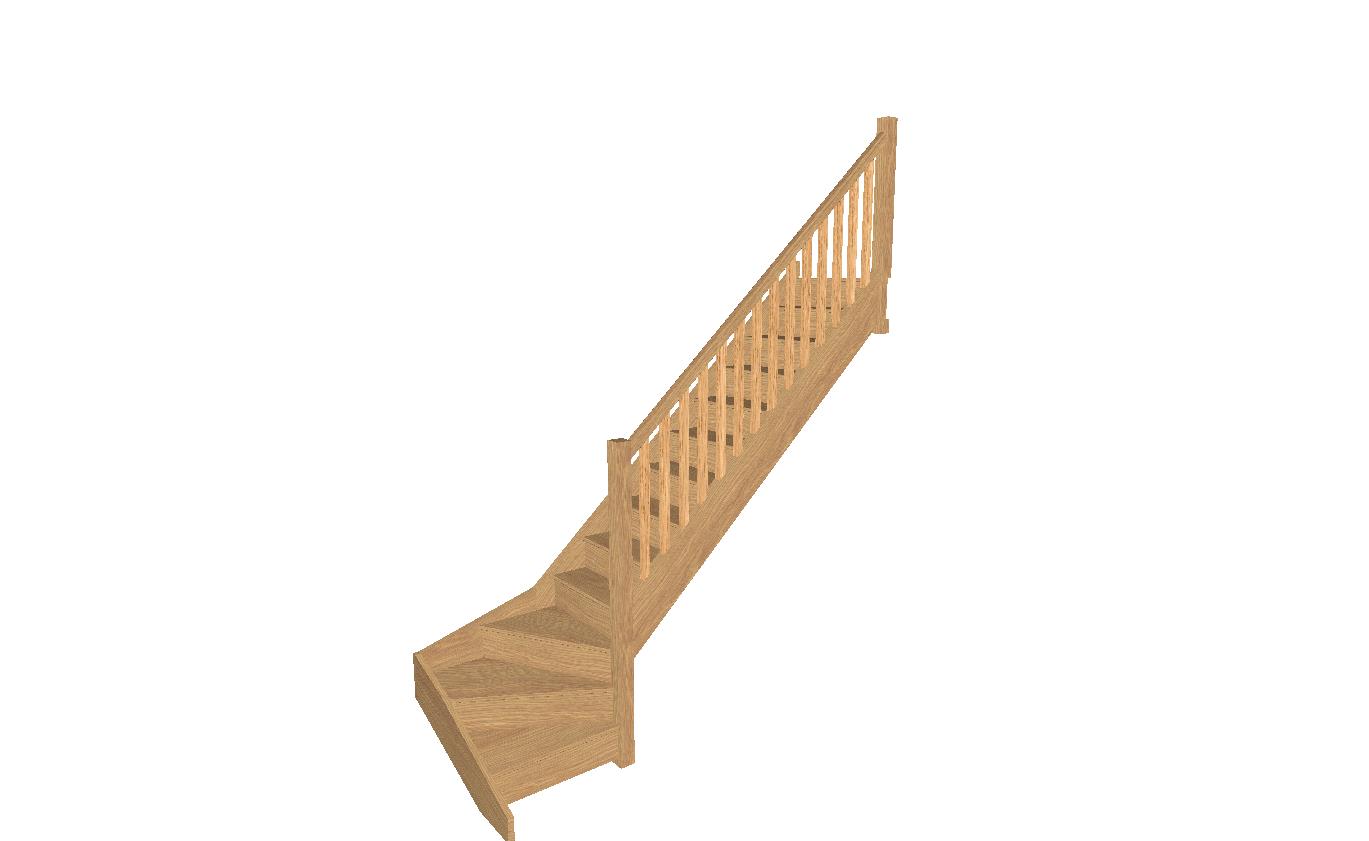

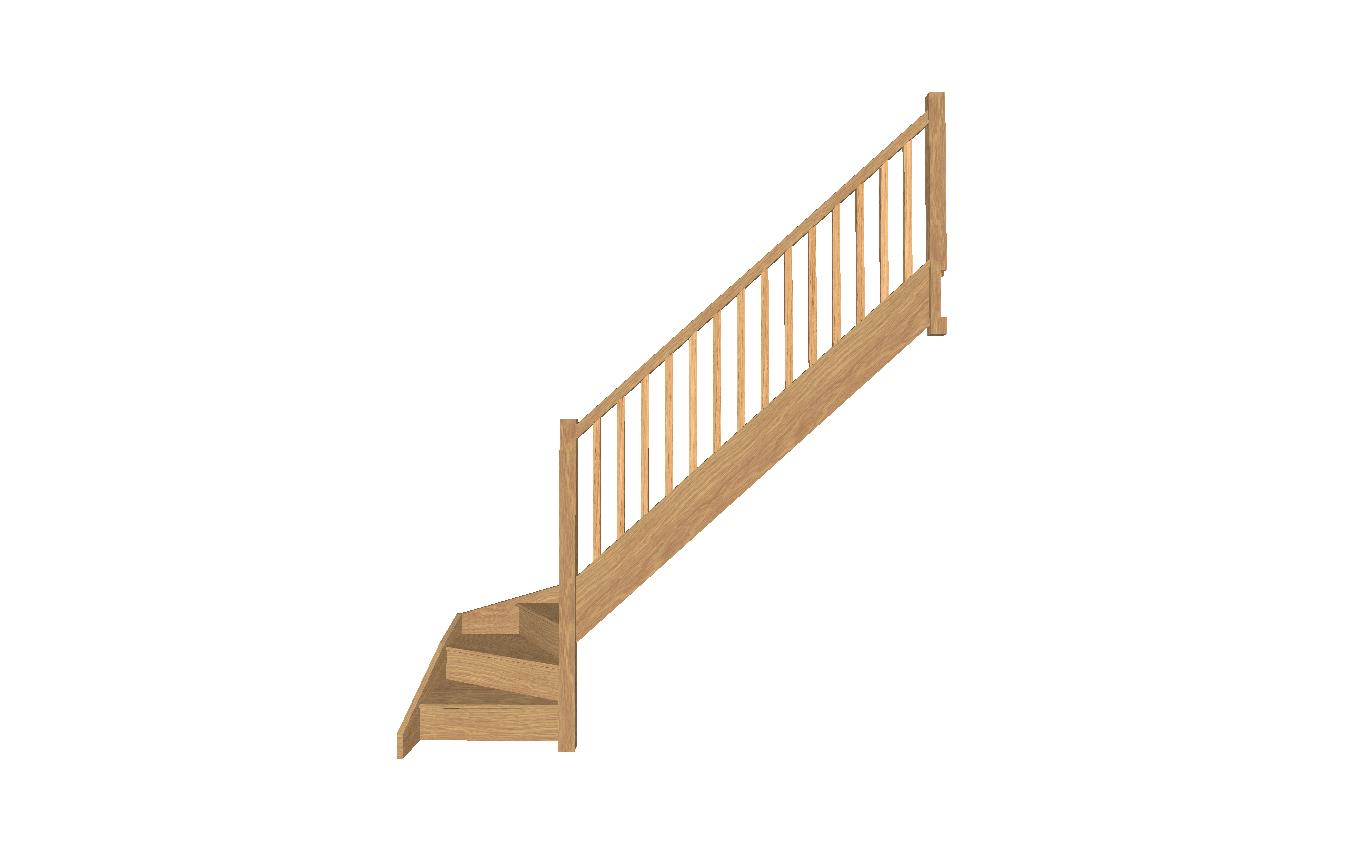

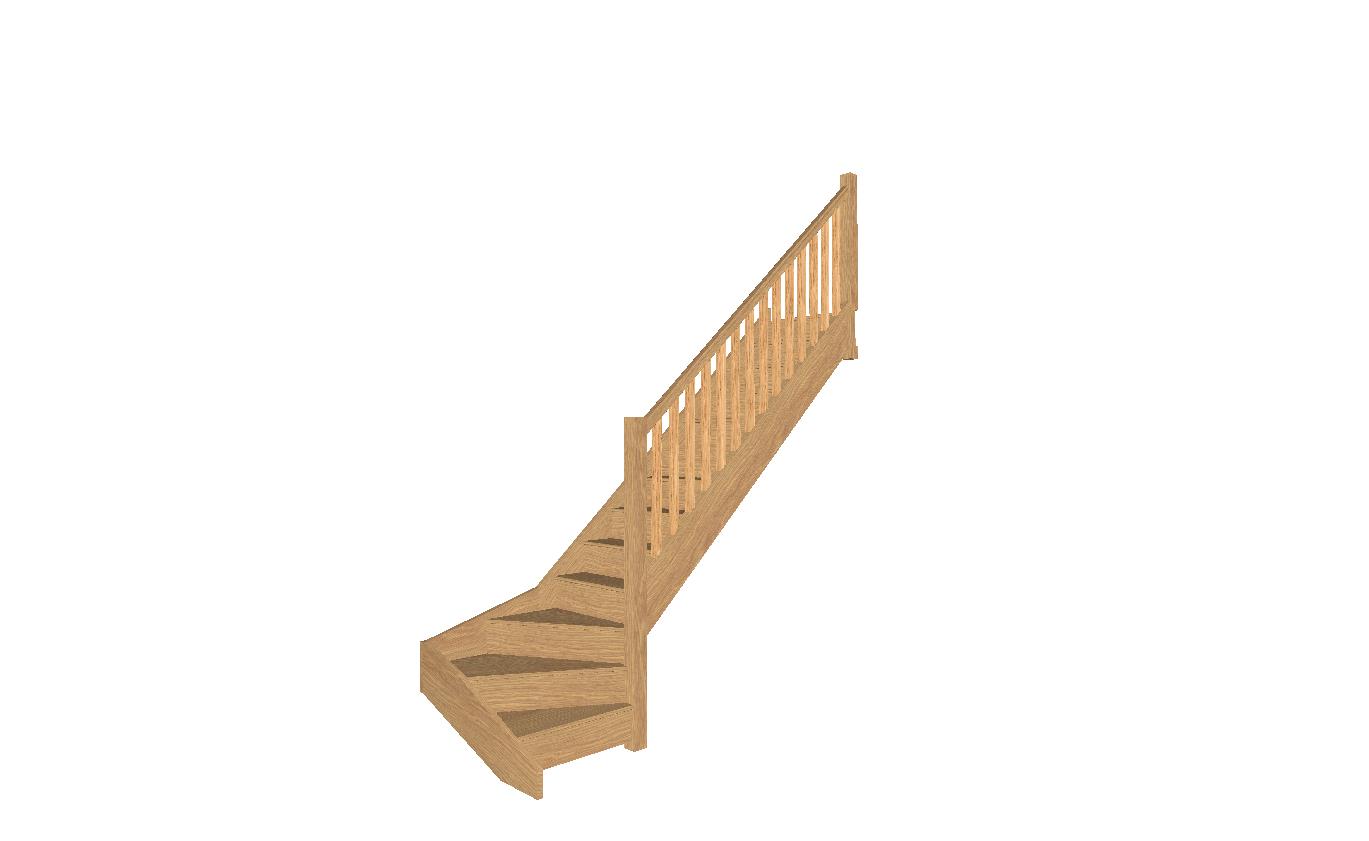

Craftsmans Oak Bottom Winder Staircase (R/H) — With Handrails SW39N

Choose the oak staircase that’s built to last. This Craftsmans Oak bottom winder (R/H) couples a compact turn at the foot of the flight with solid white oak strings and treads plus oak-veneered risers—a clear upgrade over entry-level MDF designs. Supplied with handrails and square balustrade, with optional style upgrades.

What’s included

• R/H bottom winder staircase (13 risers), built to your rise/width

• Handrail set: Select White Oak STHR handrail & STBR baserail

• Balustrade: 90×90 mm White Oak square newels & 41 mm White Oak square balusters

• Basic fixing guidance

Specification

• Strings: 32 mm White Oak

• Treads: 22 mm White Oak

• Risers: 12 mm Oak-veneered

• Newels: 90×90 mm White Oak square (upgrade options available)

• Balusters: 41 mm White Oak square (upgrade options available)

• Finish: Supplied unfinished, ready for on-site finishing

Layout & compliance

• Right-hand bottom winder (tread 1 at the bottom, turning right)

• Rise range: 2500–2860 mm · Width: 660–1000 mm

• Target pitch ≤ 42° (Part K). Final compliance depends on headroom, landings and stairwell size.

Prefer a different balustrade look? Choose Stop-Chamfered or Turned options at checkout.
