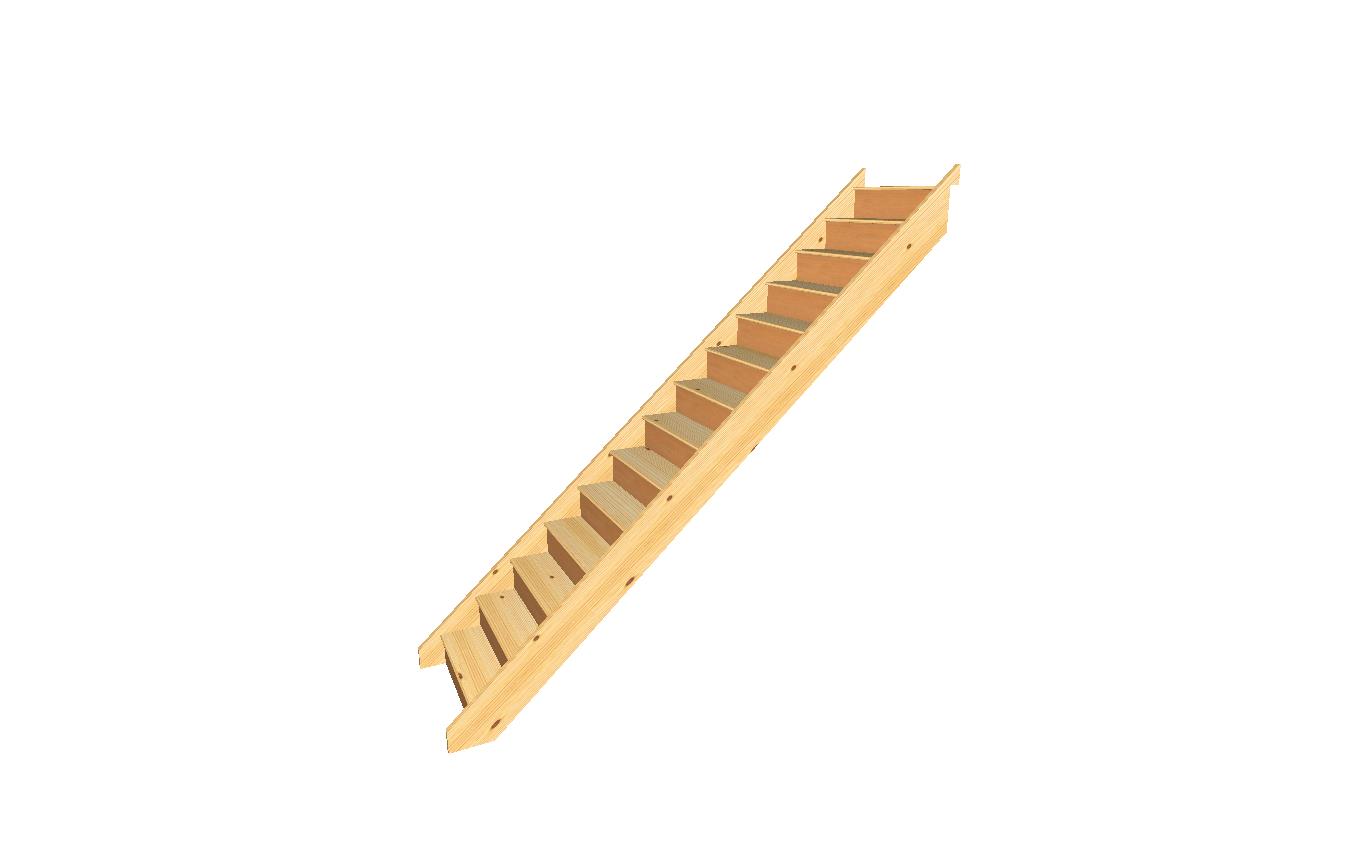

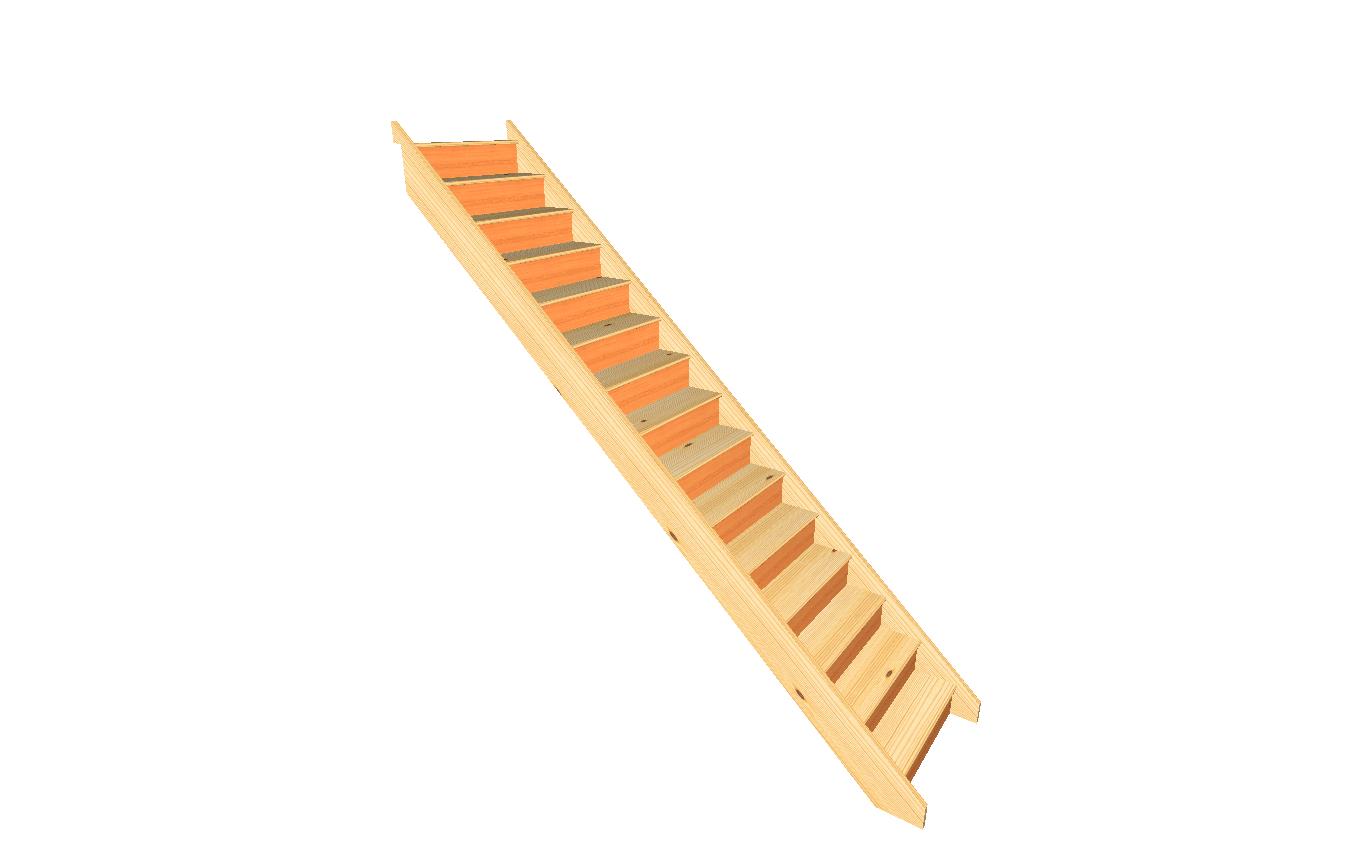

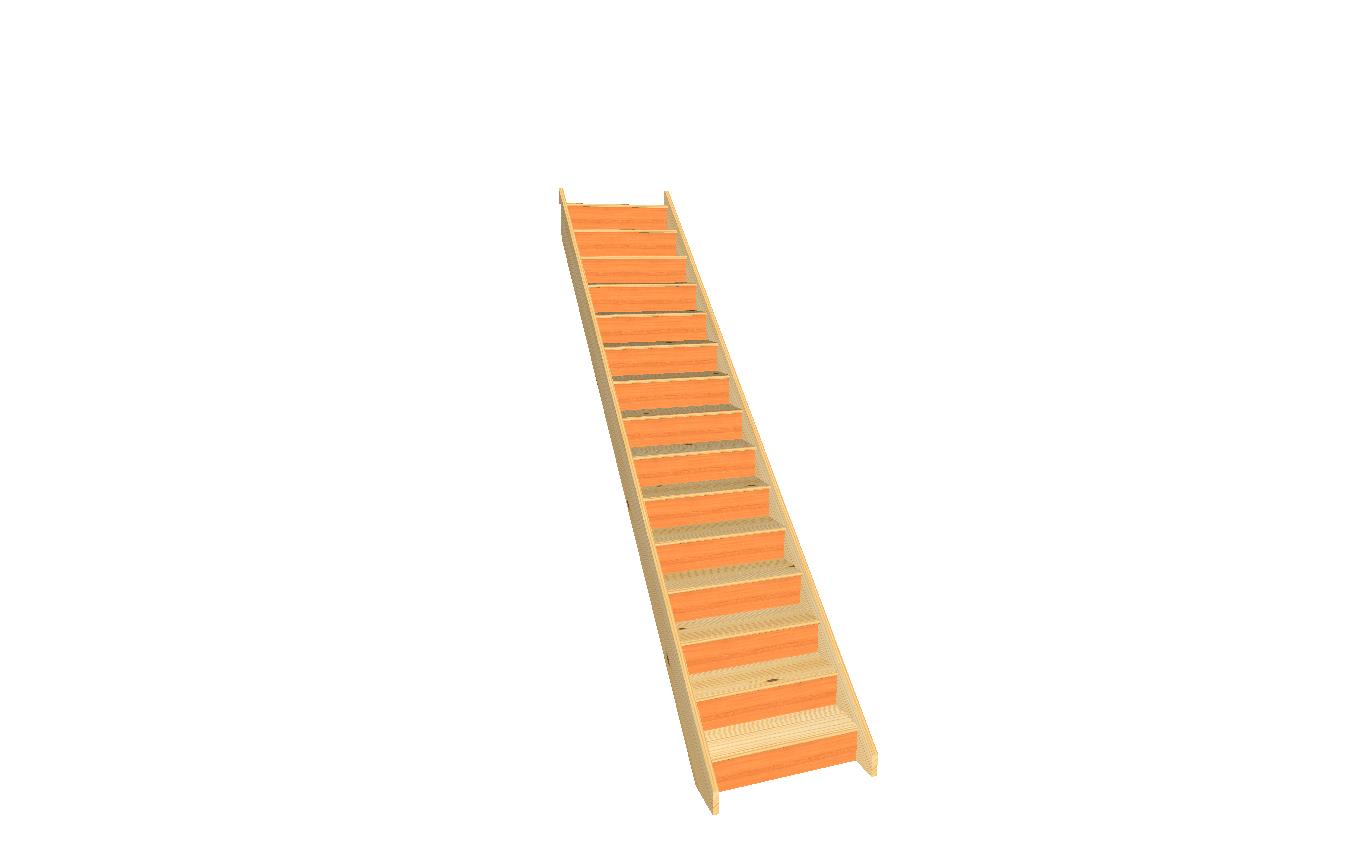

Craftsmans Pine Straight Staircase — 15 Risers (No Handrails)

Overview

Our Craftsmans Pine Straight Staircase (15 risers) is a practical, UK-made flight supplied without handrails (ideal where walls or separate balustrade packages are used). Set Total Rise between 2880–3300 mm, choose stair width 600–1000 mm in 5 mm steps, and let the configurator compute going to keep the pitch ≤42° (manual going override available).

Note: Due to the overall length at 15 risers, this staircase may be supplied in two sections with strings jointed in length.

Key features

• 15 risers (straight flight) for 2880–3300 mm floor-to-floor

• No handrails supplied (flight only)

• Strings: 32 mm EdgeLam Pine (standard)

• Treads: EdgeLam Pine (Craftsmans spec)

• Risers: 12 mm plywood (standard) or EdgeLam Pine upgrade (+£10 × 15 = £150)

• Width: 600–1000 mm (5 mm increments)

• Going: auto to ≤42° (min 220 mm) + manual override option

• Comfort check: 2R+G guidance band 550–700 mm displayed live

• Headroom tool: interactive check to confirm ≥2000 mm clearance

• Build options: Assembled or Flatpack

• Made in the UK by Stairplan

Surcharges & options (as shown in the configurator)

• Riser upgrade (EdgeLam Pine): +£150 total (15 × £10)

• Width bands: uplift for 901–950 mm and 951–1000 mm

• Going bands: uplift for 241–245 mm and 246–250 mm goings

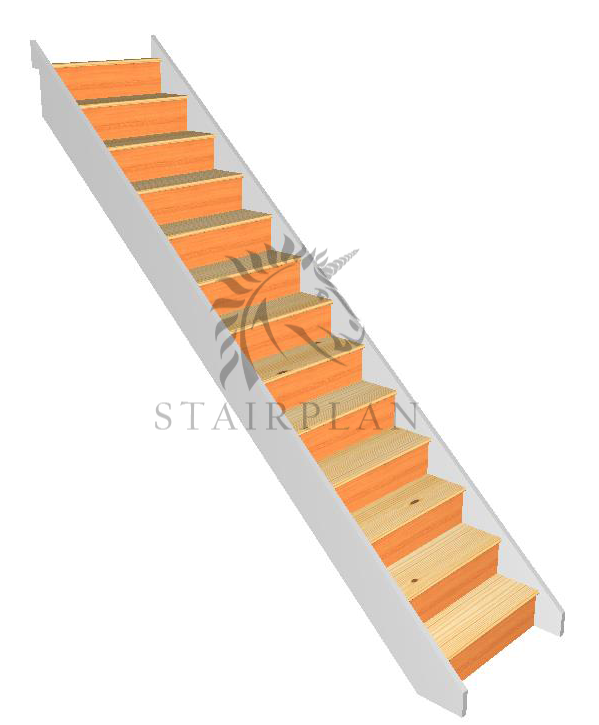

• Strings (White Primed 27 mm): small uplift vs standard Pine 32 mm

Compliance & guidance

• Pitch: auto-kept within ≤42° (domestic requirement)

• Going: never below 220 mm (auto rule)

• 2R+G comfort band: 550–700 mm shown live

• Headroom: checker helps verify ≥2000 mm

What’s included

• 15-riser straight flight with strings, treads, and chosen riser material

• Fixings appropriate to the selected build option

Not included: handrails, balusters, landing balustrade, finishing, site fitting, or structural calcs (ask if required).

Delivery

Standard kerbside delivery. Ensure suitable manpower is on site to offload upon arrival.

Tech Specs (quick reference)

• Total rise range: 2880–3300 mm

• Risers: 15 (individual rise shown live)

• Width options: 600–1000 mm (step 5 mm)

• Going: auto to ≤42° (min 220 mm), manual override available

• Strings: 32 mm Pine (standard) or 27 mm White Primed (upgrade)

• Treads: EdgeLam Pine

• Risers: 12 mm plywood (standard) or EdgeLam Pine (+£150 total)

• Total going (shown live): $(14\times \text{going})+\text{riser thickness}+20\text{ mm nosing}$

FAQs

Will this 15-riser flight come in one piece?
It may be supplied in two sections due to overall length, with strings jointed in length.

Is it compliant without handrails?
Handrails are typically required on at least one side in domestic settings. This product is supplied without handrails to suit wall-mounted rails or separate balustrade packs. Please confirm your compliance route.

Can I choose a specific going?
Yes. The configurator auto-calculates to keep pitch ≤42° (and ≥220 mm going). Tick Override Going to set a manual value; the live pitch and 2R+G band update instantly.

How do I check headroom?
Use the Headroom Check: set your stairwell opening and ceiling height to see the live headroom clearance. Aim for ≥2000 mm.

Assembled or flatpack?
Both are available—pick your preference in the options.
