Craftsmans Pine Straight Staircase — 14 Risers (No Handrails)

Overview

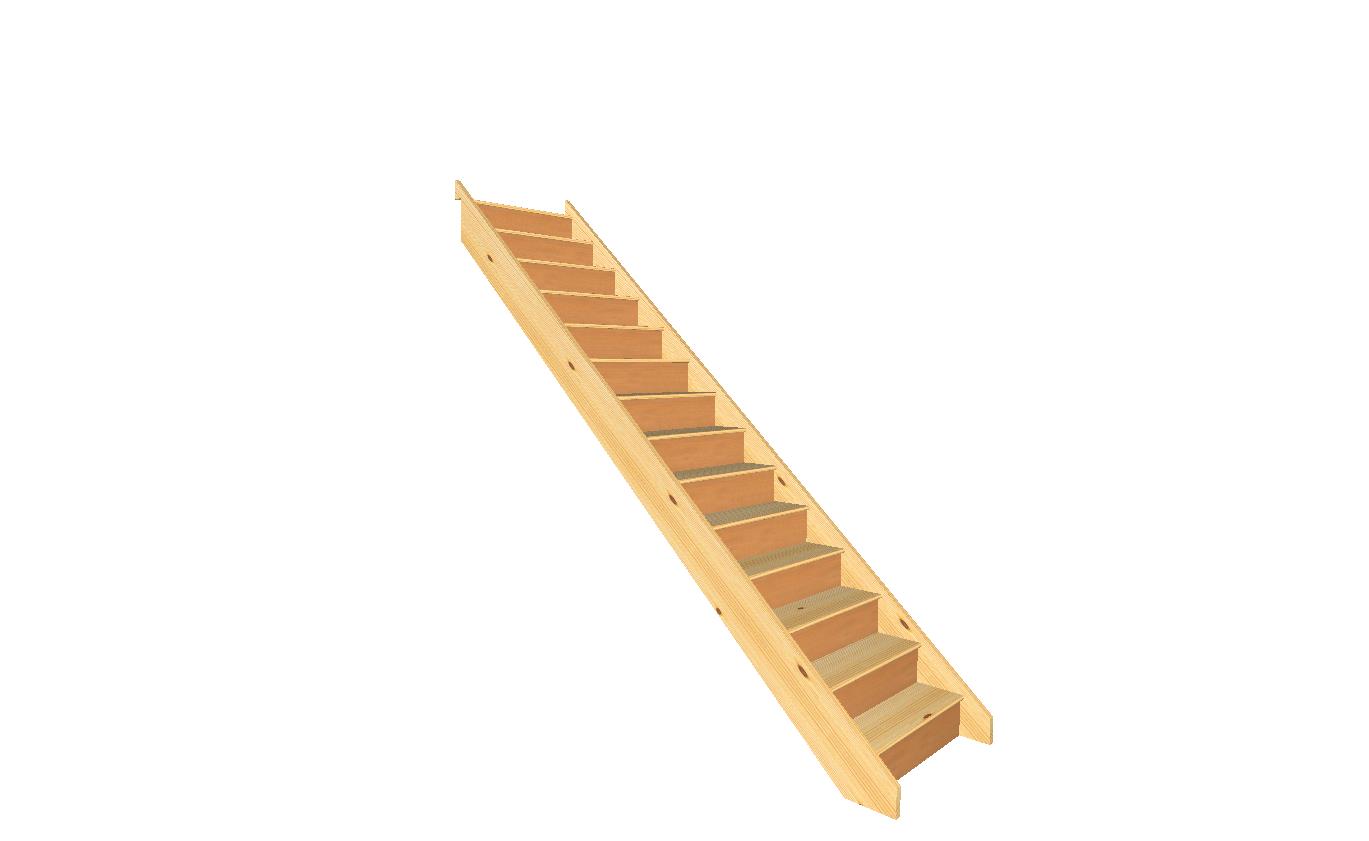

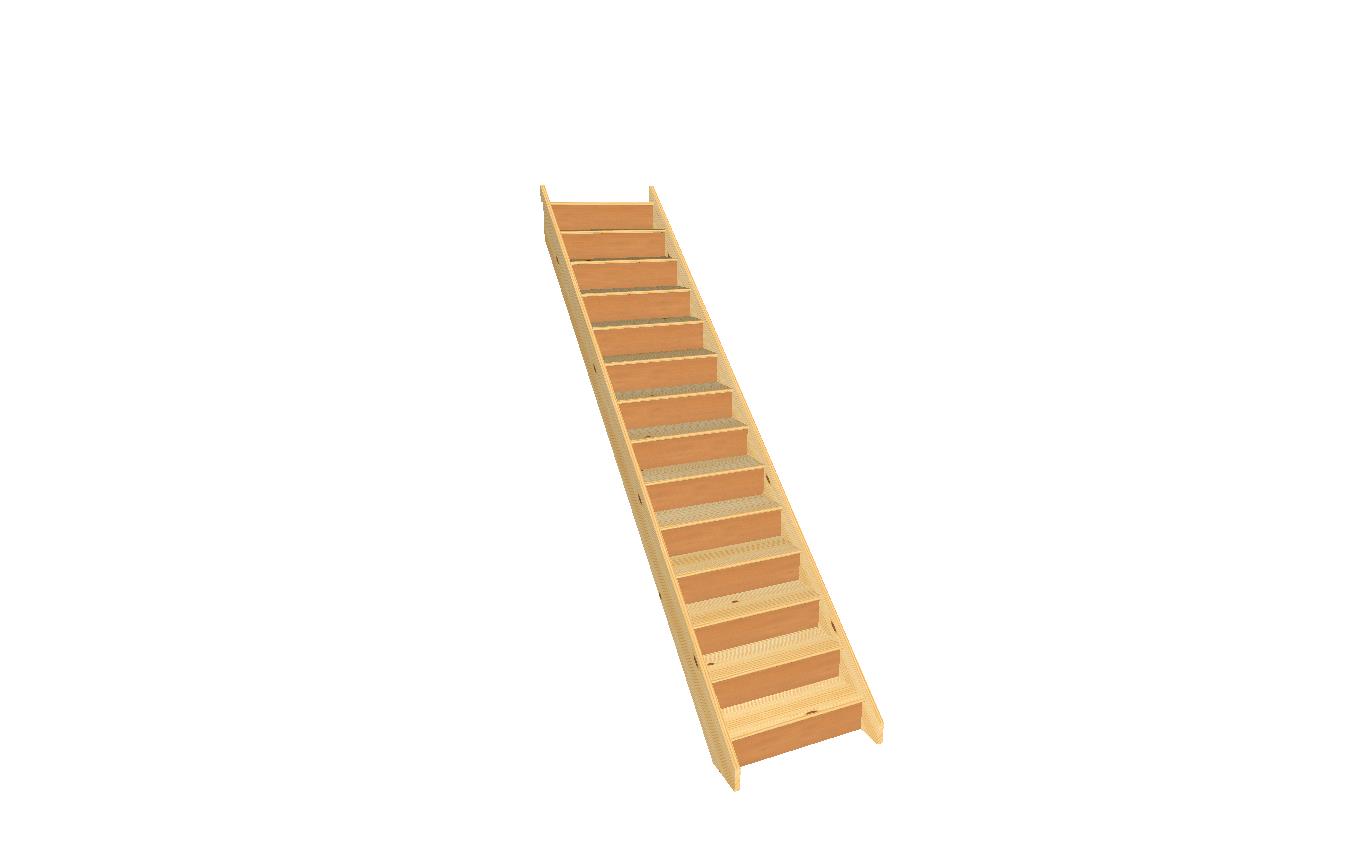

Our Craftsmans Pine Straight Staircase (14 risers) is a practical, workshop-built flight designed for domestic projects needing a clean pine look without balustrade. The product ships without handrails or balusters (ideal where walls or separate balustrade packages are planned). Use the configurator to set Total Rise between 2700–3080 mm, pick your stair width (600–1000 mm in 5 mm steps), and let the tool calculate the going to meet the 42° maximum pitch rule (with the option to override going manually if your layout requires it).

Key features

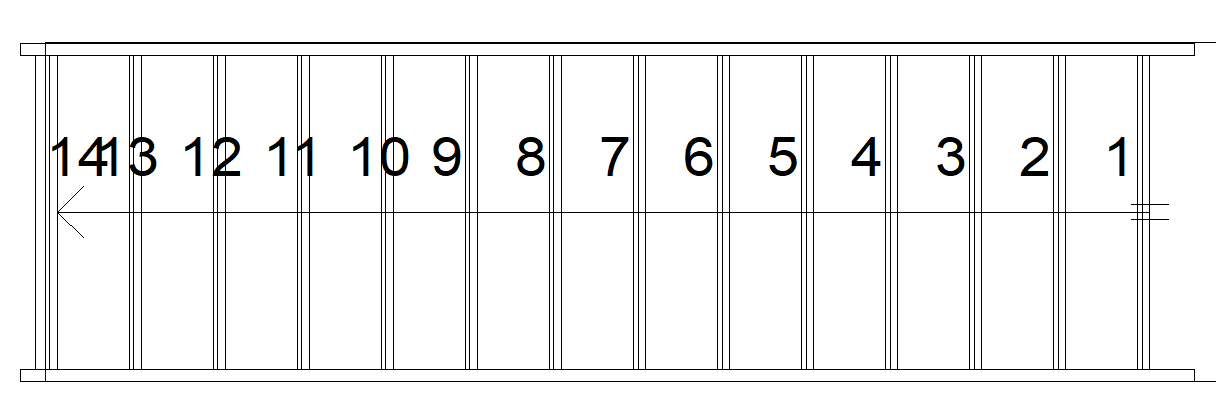

• 14 risers (straight flight) for 2700–3080 mm floor-to-floor

• No handrails supplied (flight only)

• EdgeLam Pine 32 mm strings (standard)

• Treads: EdgeLam Pine (standard Craftsmans spec)

• Risers: 12 mm plywood (standard) or EdgeLam Pine upgrade (+£10 per riser)

• Width: 600–1000 mm (5 mm increments)

• Going: auto-computed to meet the ≤42° pitch (min 220 mm), with manual override option

• Comfort check: 2R+G guidance band 550–700 mm displayed live

• Headroom tool: optional interactive check to confirm ≥2000 mm clearance

• Build options: Assembled or Flatpack

• Made in the UK by Stairplan

Surcharges & options (as shown in configurator)

• Riser material upgrade (Pine): +£10 × number of risers

• Width bands: additional uplift for 901–950 mm and 951–1000 mm

• Going bands: small uplift for larger goings (241–245 mm, 246–250 mm)

• Strings (White Primed 27 mm): small uplift vs standard Pine 32 mm

Note: This 14-riser flight is typically supplied as a single section.

Compliance & guidance

• Pitch: auto-kept within ≤42° (per UK domestic requirements)

• Going: never below 220 mm (auto rule)

• 2R+G comfort band: shown live for user comfort guidance (550–700 mm)

• Headroom check: tool helps verify ≥2000 mm on your stairwell opening

What’s included

• 14-riser straight flight, strings, treads, and selected riser material

What’s not included: handrails, balusters, landing balustrade, newel caps, finishing, site fitting, or structural calculations

Delivery

Standard kerbside delivery. Ensure sufficient manpower is available on site to offload safely upon arrival.

Tech Specs (quick reference)

• Total rise range: 2700–3080 mm

• Risers: 14 (individual rise shown live)

• Width options: 600–1000 mm (step 5 mm)

• Going: auto to ≤42° (min 220 mm), manual override available

• Strings: 32 mm Pine (standard) or 27 mm White Primed (upgrade)

• Treads: EdgeLam Pine

• Risers: 12 mm plywood (standard) or EdgeLam Pine (+£10 per riser)

• Total going shown live: $(13\times \text{going})+\text{riser thickness}+20\text{mm nosing}$

FAQs

Is this staircase compliant without handrails?
Handrails are a building regulations requirement on at least one side in most domestic settings. This product is supplied without handrails to suit wall-mounted handrails or separate balustrade packages. Please confirm your project’s compliance route before ordering.

Can I choose my own going?
Yes. The configurator auto-calculates going to keep pitch ≤42° (and ≥220 mm). If you need a specific going, tick Override Going and set it manually; the live pitch and 2R+G band will update.

Will it fit my stairwell headroom?
Use the Headroom Check: set your stairwell opening and ceiling height to see the live headroom clearance. Aim for ≥2000 mm.

Do you supply it assembled?
Yes — choose Assembled or Flatpack in the options.

Can I add handrails later?
Yes. You can add wall-mounted handrails or a matching balustrade set separately.
