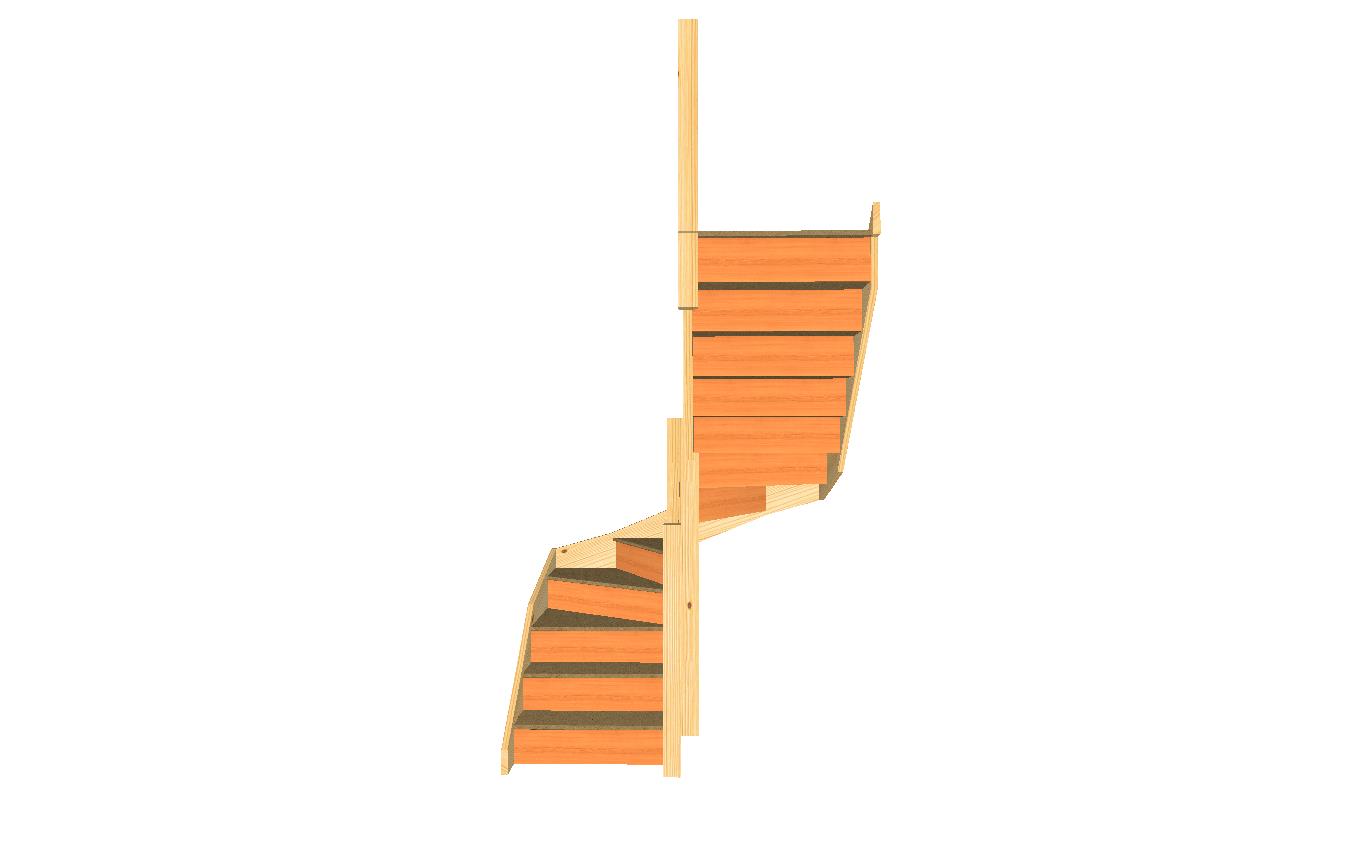

S2W3W34N Kite Winder Staircase – Right-Hand (With Handrail & Balustrade)

S2W3W34N – Right-Hand Kite Winder Staircase with Handrail & Balustrade | Trade Range

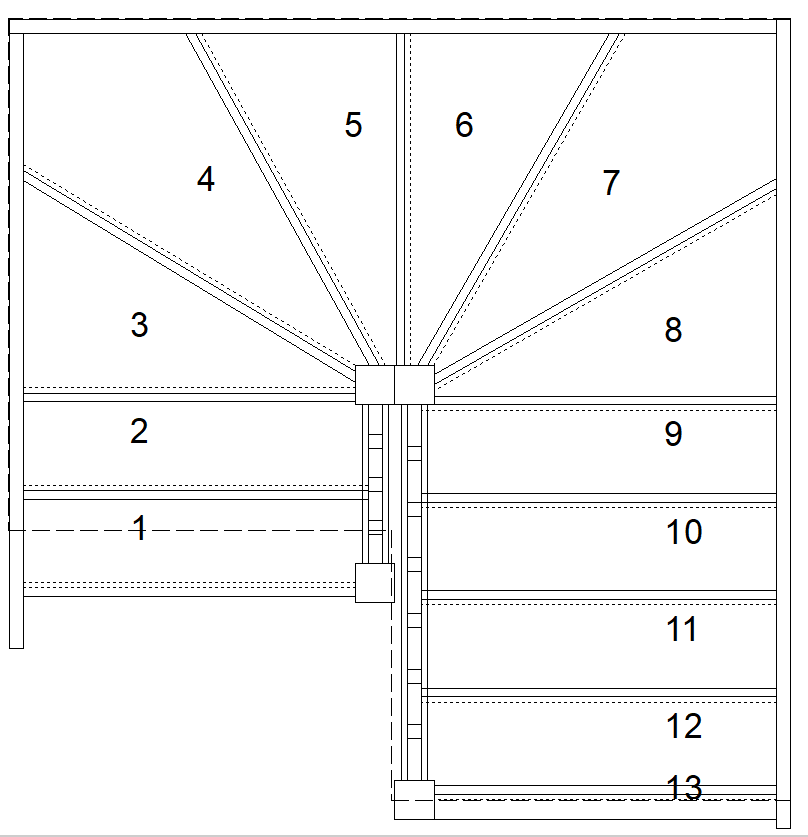

The S2W3W34N Right-Hand staircase is a Trade Range kite winder stair designed for projects where a change of direction is required without the footprint of a full landing. Featuring two goings before the turn and four goings after, this layout offers a balanced and practical solution that suits many domestic stairwells.

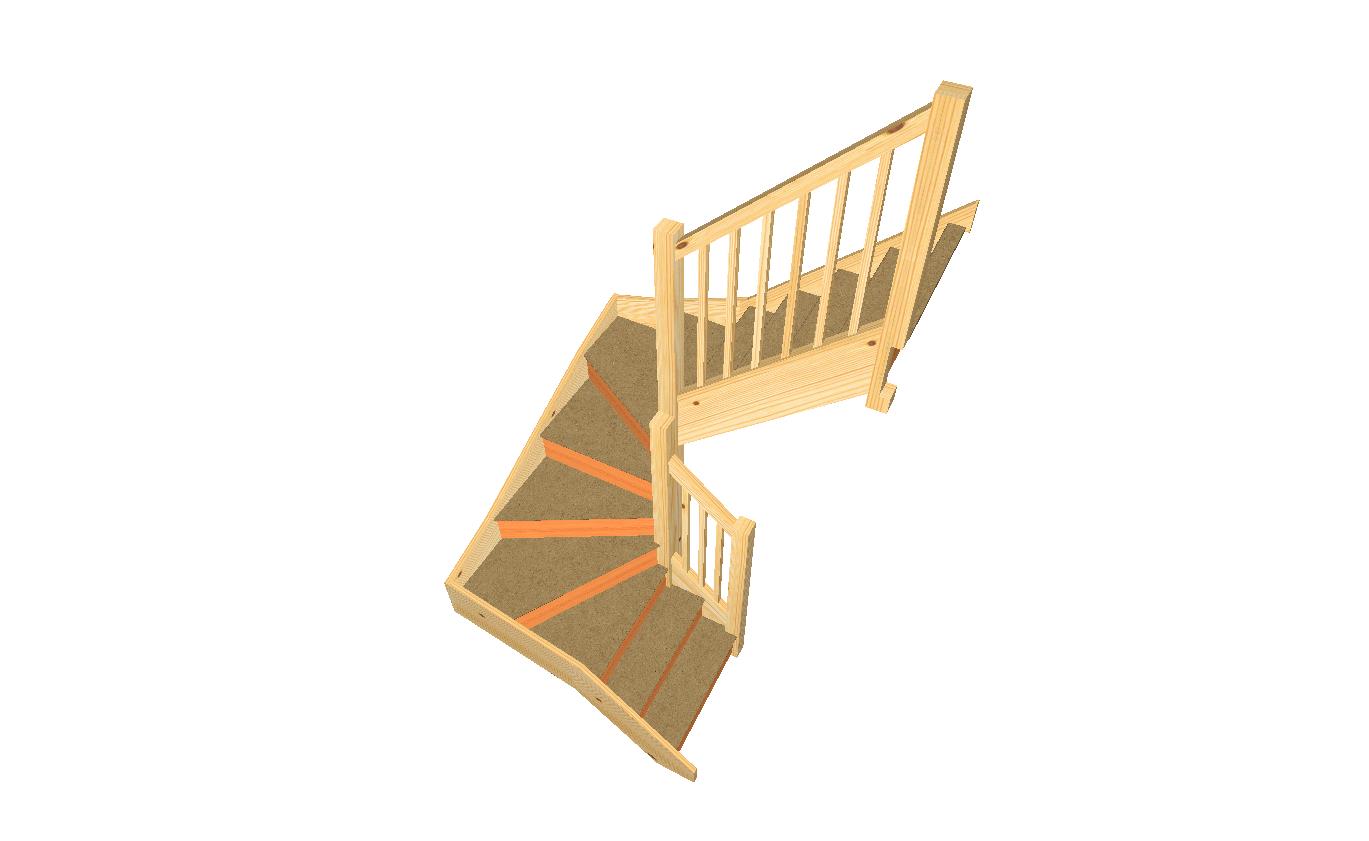

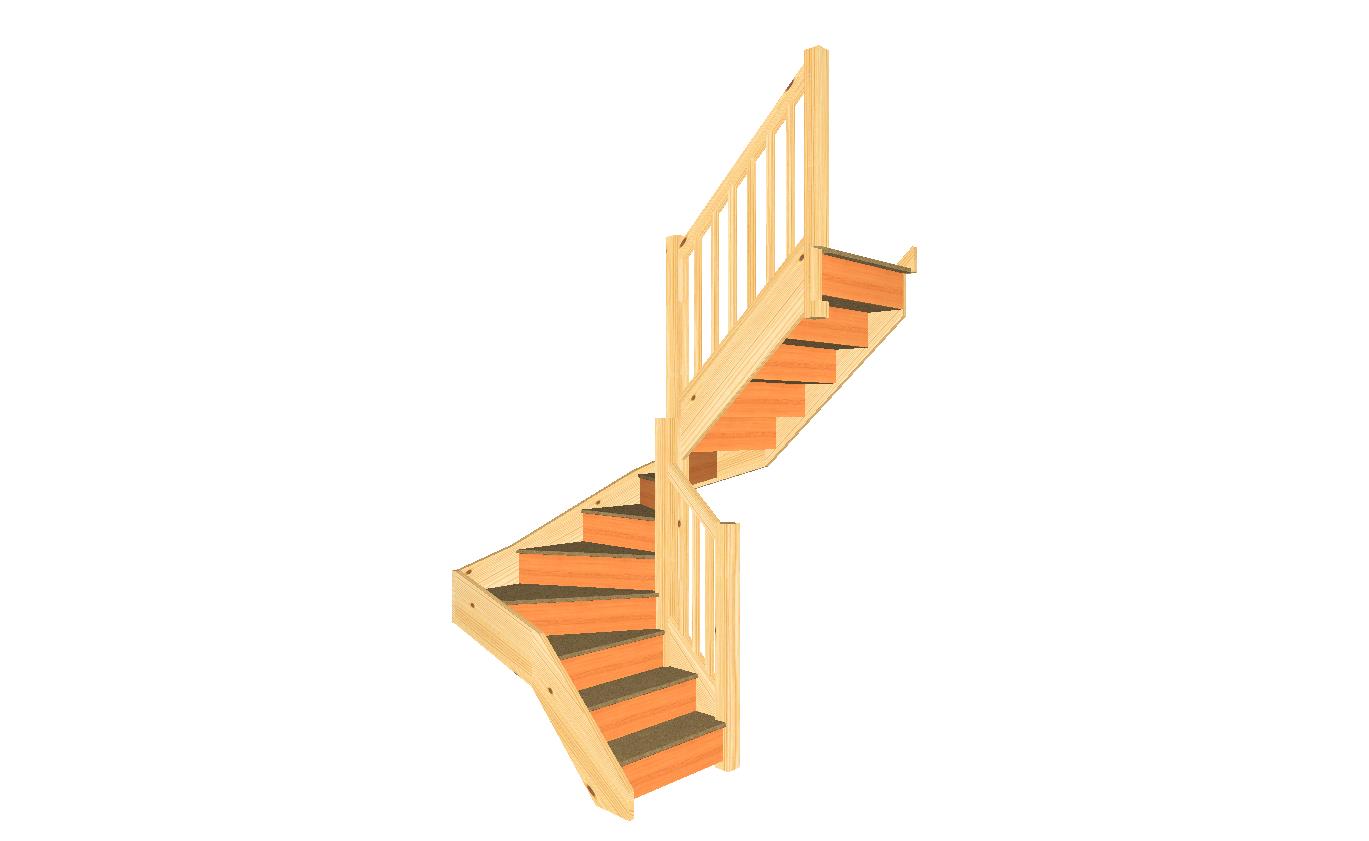

Turning to the right as you ascend, this version is supplied with a handrail and balustrade, making it suitable for open staircases where edge protection, safety, and visual continuity are required.

What makes this a kite winder stair

Unlike straight or quarter-landing stairs, a kite winder uses shaped treads to change direction smoothly within a compact space. The S2W3W34N layout provides a more gradual transition through the winder section compared to tighter configurations, helping improve usability while keeping the overall footprint efficient.

Configure to suit your build

This staircase is configured online rather than supplied in fixed sizes:

• Choose your total floor-to-floor rise

• Select the overall width over the strings

• The configurator calculates:

  • Individual rise height

  • Stair going

  • Pitch angle

  • Entry length, centre run (Run B), and exit length

All values are displayed in a live Calculated Summary, allowing you to assess fit, proportions, and compliance guidance before placing your order.

Key characteristics

• Model: S2W3W34N

• Stair type: Kite winder staircase

• Turn direction: Right-Hand (RH)

• Handrail & balustrade: Included

• Risers: 13

• Total rise range: 2500–2860mm

• Width range (over strings): 600–1000mm

• Design intent: Compact kite winder layout with extended exit run

• Pitch guidance: Calculated to target ≤ 42°, with optional manual going override

Supplied as a complete staircase kit

The staircase is manufactured to the configured dimensions shown at checkout and supplied with the selected handrail and balustrade components. All calculated values are carried through to the cart and order confirmation, ensuring clarity for manufacture and installation.

If you require this layout without handrails, please select the corresponding S2W3W34N No Handrails product.

Key specifications

• Stair type: Kite winder staircase

• Layout code: S2W3W34N

• Direction: Right-Hand

• Handrail & balustrade: Included

• Number of risers: 13

• Total rise: 2500–2860mm

• Stair width: 600–1000mm

• Calculated outputs shown:
  Entry length · Run B length · Exit length · Pitch · Going · Individual rise
