S5W3W31N – Left-Hand Winding Staircase (With Handrails & Balustrade)

S5W3W31N – Left-Hand Winding Staircase with Handrail & Balustrade | Trade Range

The S5W3W31N Left-Hand staircase is the most compact winding staircase layout in the Trade Range. By concentrating the change of direction into the winder section, using five winder treads before the turn and one after, this design allows the staircase to reverse direction within an extremely limited footprint.

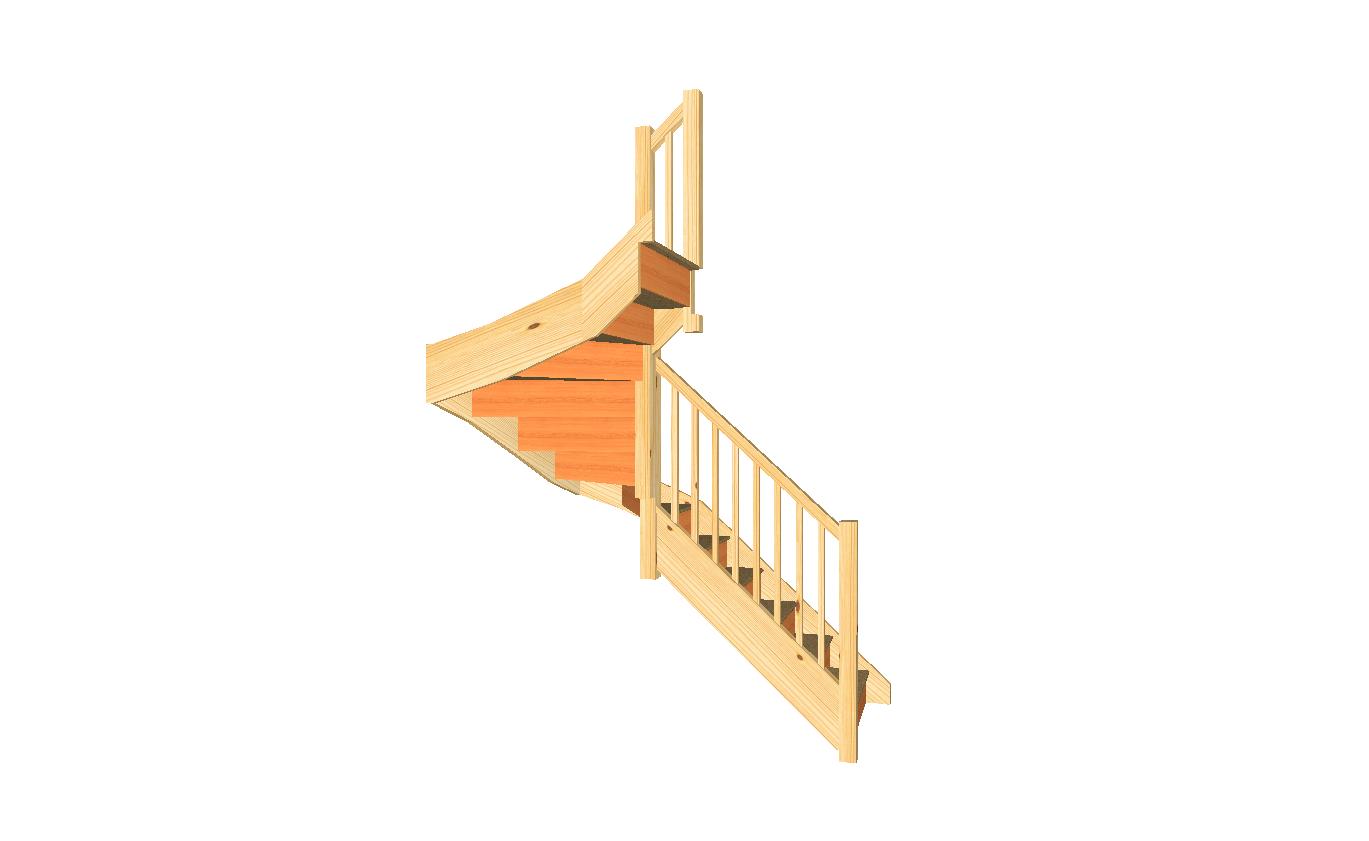

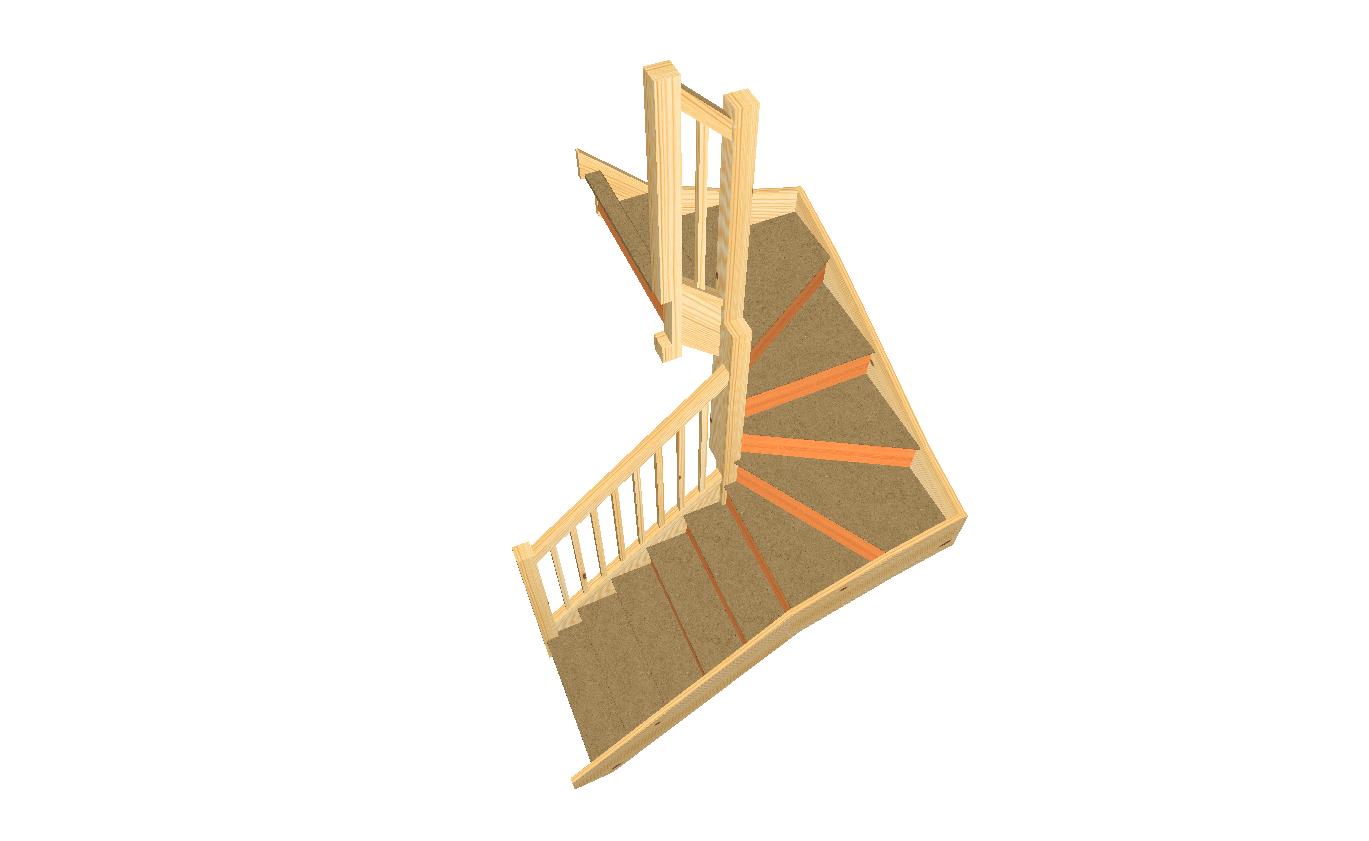

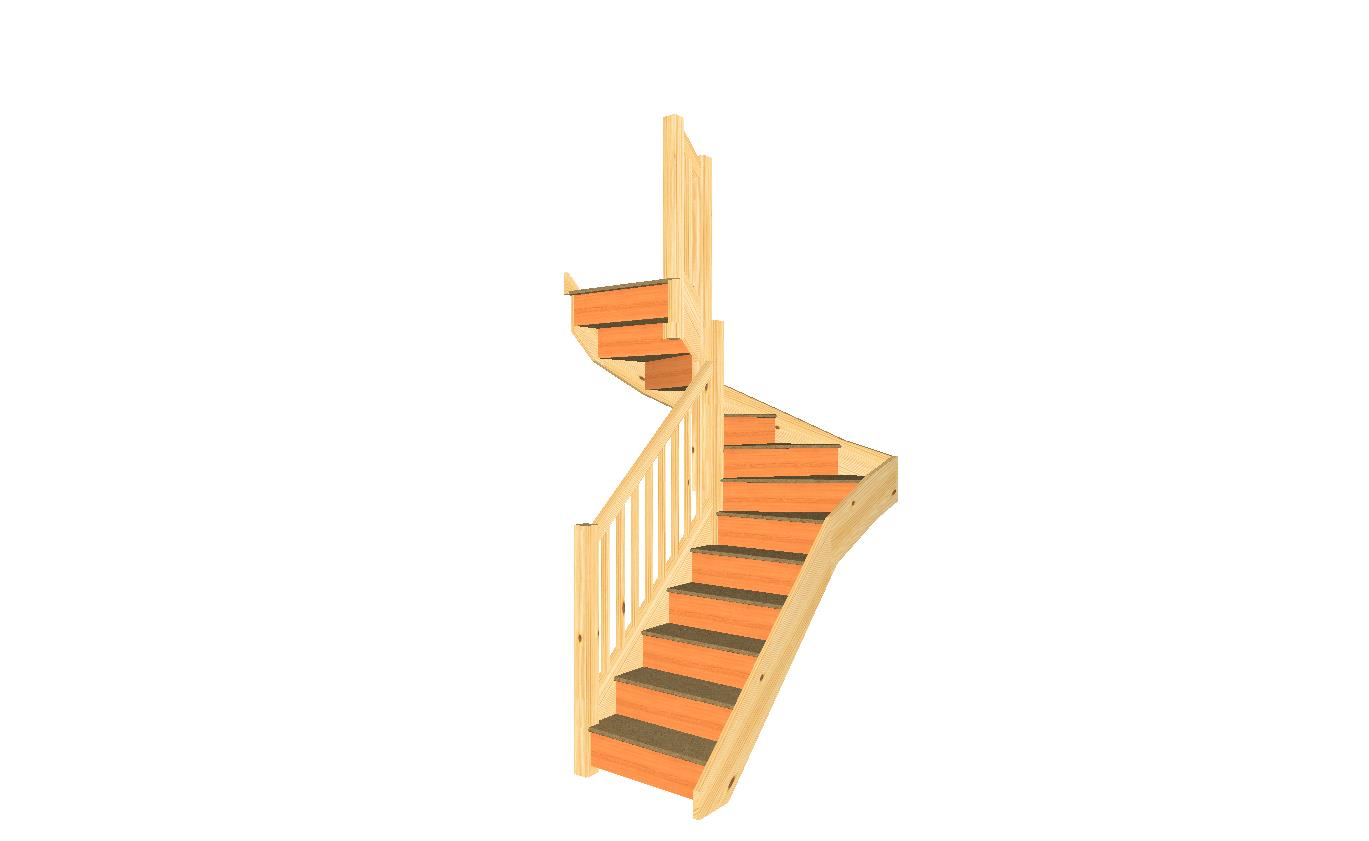

Turning to the left as you ascend, this version is supplied with a handrail and balustrade, making it suitable for open stairwells where edge protection, safety, and visual continuity are required.

Important stairwell opening & headroom guidance

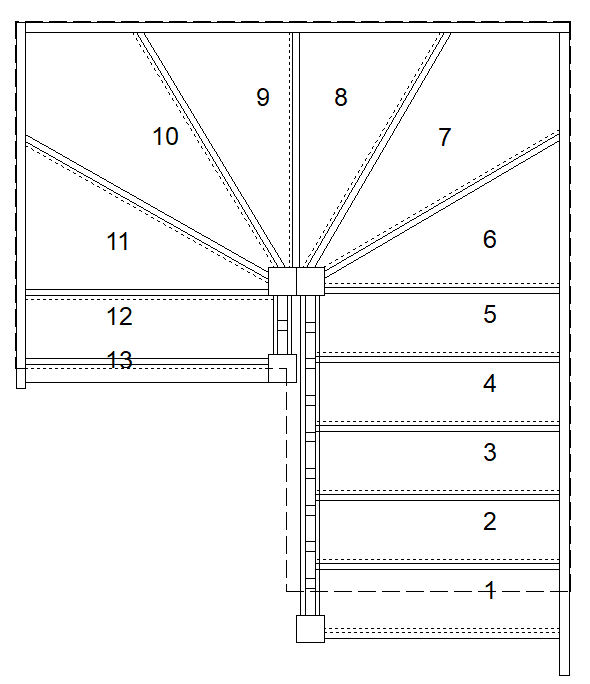

With this tight winding staircase layout, the shape of the stairwell opening directly affects headroom:

• A rectangular stairwell opening can be used

• However, to achieve the recommended 2.0m headroom, an L-shaped stairwell opening is required, extending in the direction of the staircase as it winds

This additional opening length provides clearance above the winder treads, where headroom is most restricted. The stairwell opening should be considered at an early design stage to avoid issues during installation.

If you are unsure whether your stairwell opening is suitable, please contact us before ordering.

Configured to suit your project

This winding staircase is configured online rather than supplied in fixed sizes:

• Select your total floor-to-floor rise

• Choose the overall width over the strings

• The configurator calculates in real time:

  • Individual rise height

  • Stair going

  • Pitch angle

  • Entry length, centre run (Run B), and exit length

All calculated values are shown in a live Calculated Summary, allowing you to assess proportions, footprint, and compliance guidance before purchase.

Key characteristics

• Model: S5W3W31N

• Stair type: Winding staircase

• Turn direction: Left-Hand (LH)

• Handrail & balustrade: Included

• Risers: 13

• Total rise range: 2500–2860mm

• Width range (over strings): 600–1000mm

• Stairwell opening:

  • Rectangular opening possible

  • L-shaped opening required for 2.0m headroom

• Pitch guidance: Calculated to target ≤ 42°, with optional manual going override

Supplied as a complete staircase kit

The staircase is manufactured to the configured dimensions shown at checkout and supplied with the selected handrail and balustrade components. All calculated values are carried through to the order confirmation, ensuring clarity for manufacture, delivery, and installation.

If you require this layout without handrails, please select the appropriate S5W3W31N No Handrails product.
