S5W3W31N – Right-Hand Winding Staircase (No Handrails)

S5W3W31N – Right-Hand Winding Staircase (No Handrails) | Trade Range

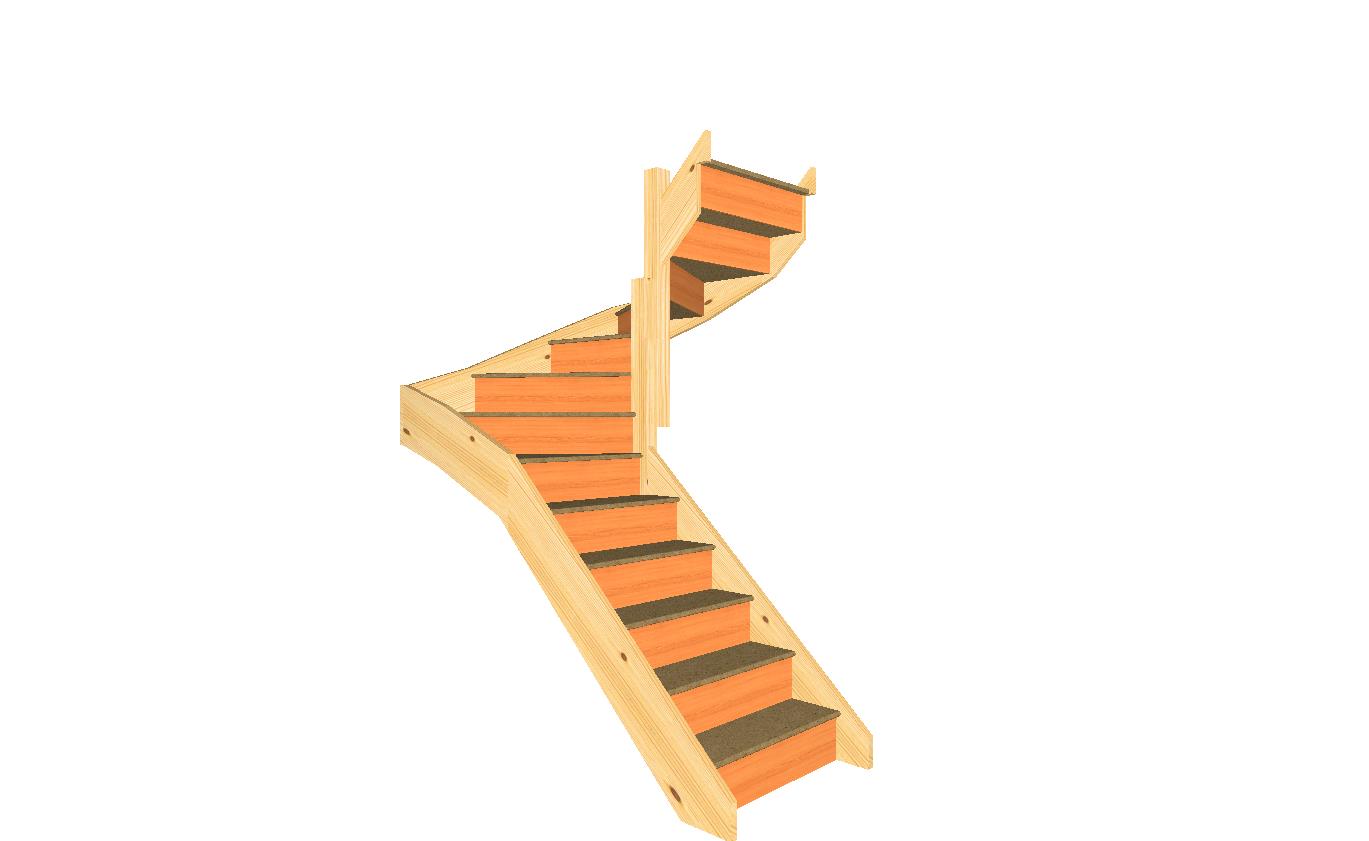

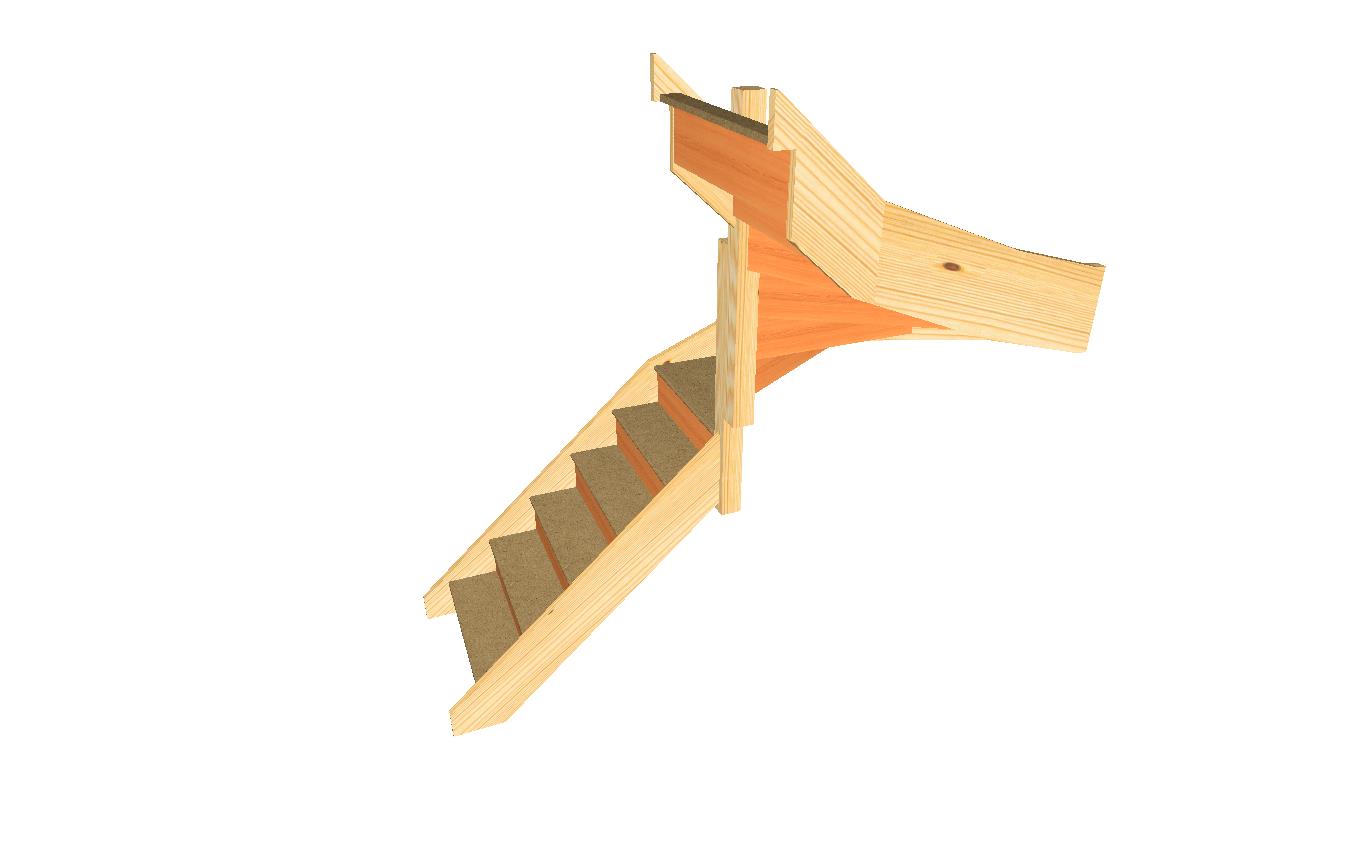

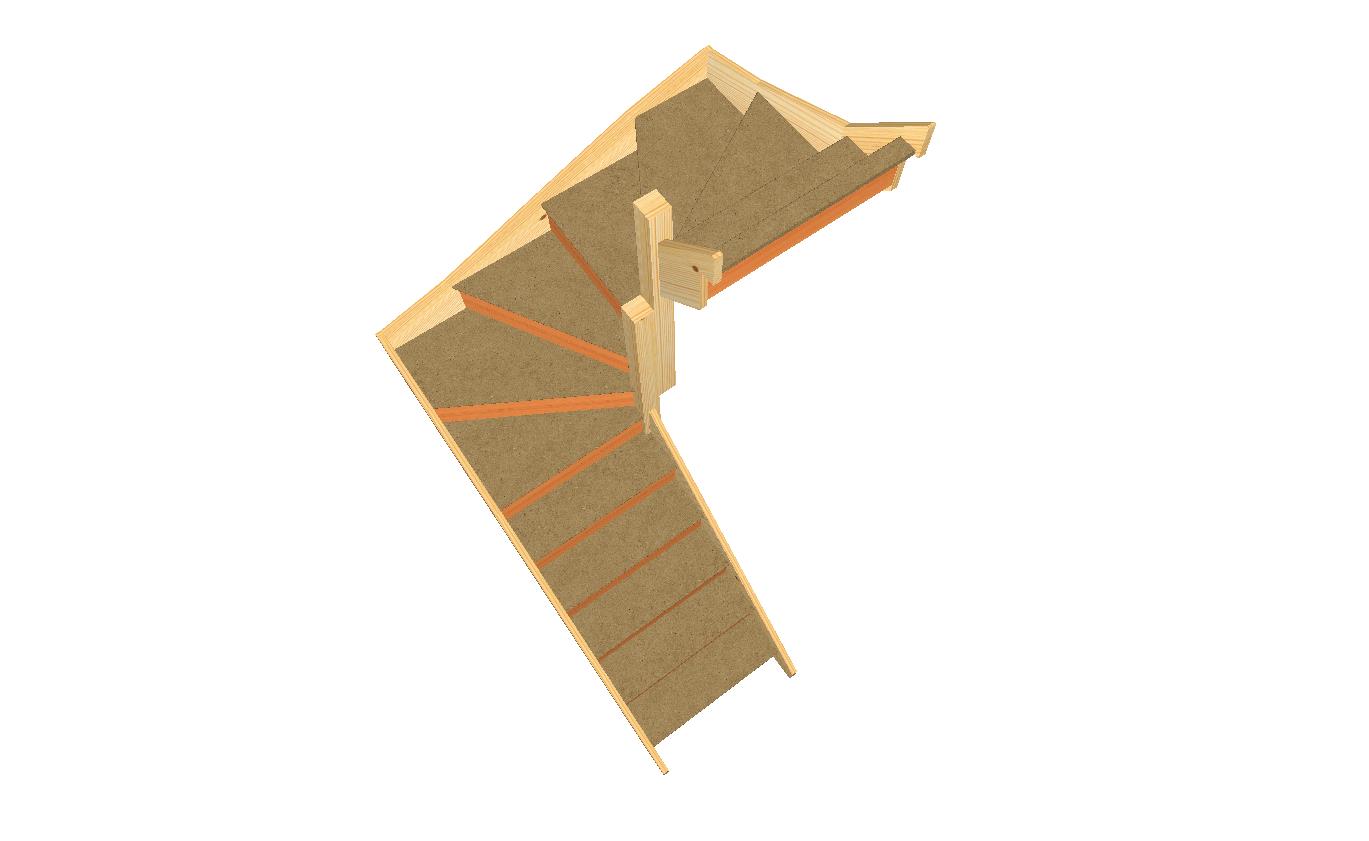

The S5W3W31N Right-Hand staircase is the most compact winding staircase layout within the Trade Range. By concentrating the direction change into the winder section, using five winder treads before the turn and one after, this layout allows the stair to reverse direction within an extremely limited footprint.

Turning to the right as you ascend, this version is supplied without handrails, making it ideal for staircases fitted between walls or where balustrade components will be installed separately.

Important stairwell opening & headroom guidance

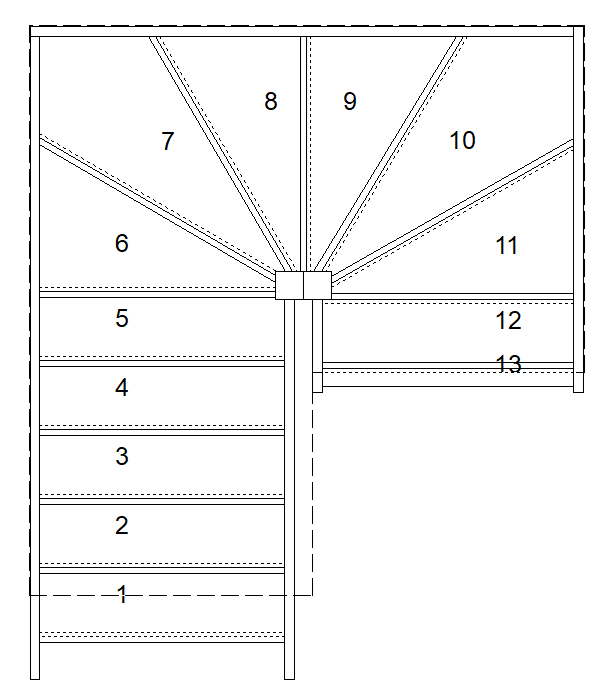

Due to the tight geometry of this winding staircase, the shape of the stairwell opening has a direct impact on achievable headroom:

• A rectangular stairwell opening may be used

• However, to achieve the recommended 2.0m headroom, an L-shaped stairwell opening is required, extending in the direction of the stair as it winds

This additional opening length provides clearance above the winder treads, where headroom is most restricted. The stairwell opening should therefore be planned early in the design stage.

If you are unsure whether your stairwell opening is suitable, please contact us before ordering.

Configured to suit your project

This staircase is configured online rather than supplied in fixed sizes:

• Select your total floor-to-floor rise

• Choose the overall width over the strings

• The configurator calculates in real time:

  • Individual rise height

  • Stair going

  • Pitch angle

  • Entry length, centre run (Run B), and exit length

All calculated values are shown in a live Calculated Summary, allowing you to assess proportions, footprint, and suitability before purchase.

Key characteristics

• Model: S5W3W31N

• Stair type: Winding staircase

• Turn direction: Right-Hand (RH)

• Handrails: Not included

• Risers: 13

• Total rise range: 2500–2860mm

• Width range (over strings): 600–1000mm

• Stairwell opening:

  • Rectangular opening possible

  • L-shaped opening required for 2.0m headroom

• Pitch guidance: Calculated to target ≤ 42°, with optional manual going override

Supplied as a staircase kit

The staircase is manufactured to the configured dimensions shown at checkout. All calculated values are carried through to the order confirmation, providing clarity for manufacture, delivery, and installation.

If you require this layout with handrails, please select the appropriate S5W3W31N With Handrails product.
