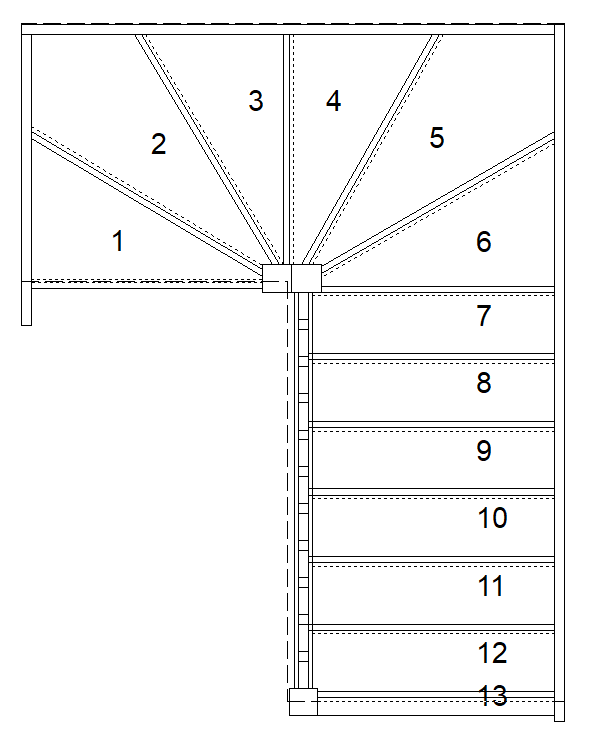

SW3W36N – Right-Hand – With Handrails (Trade Range)

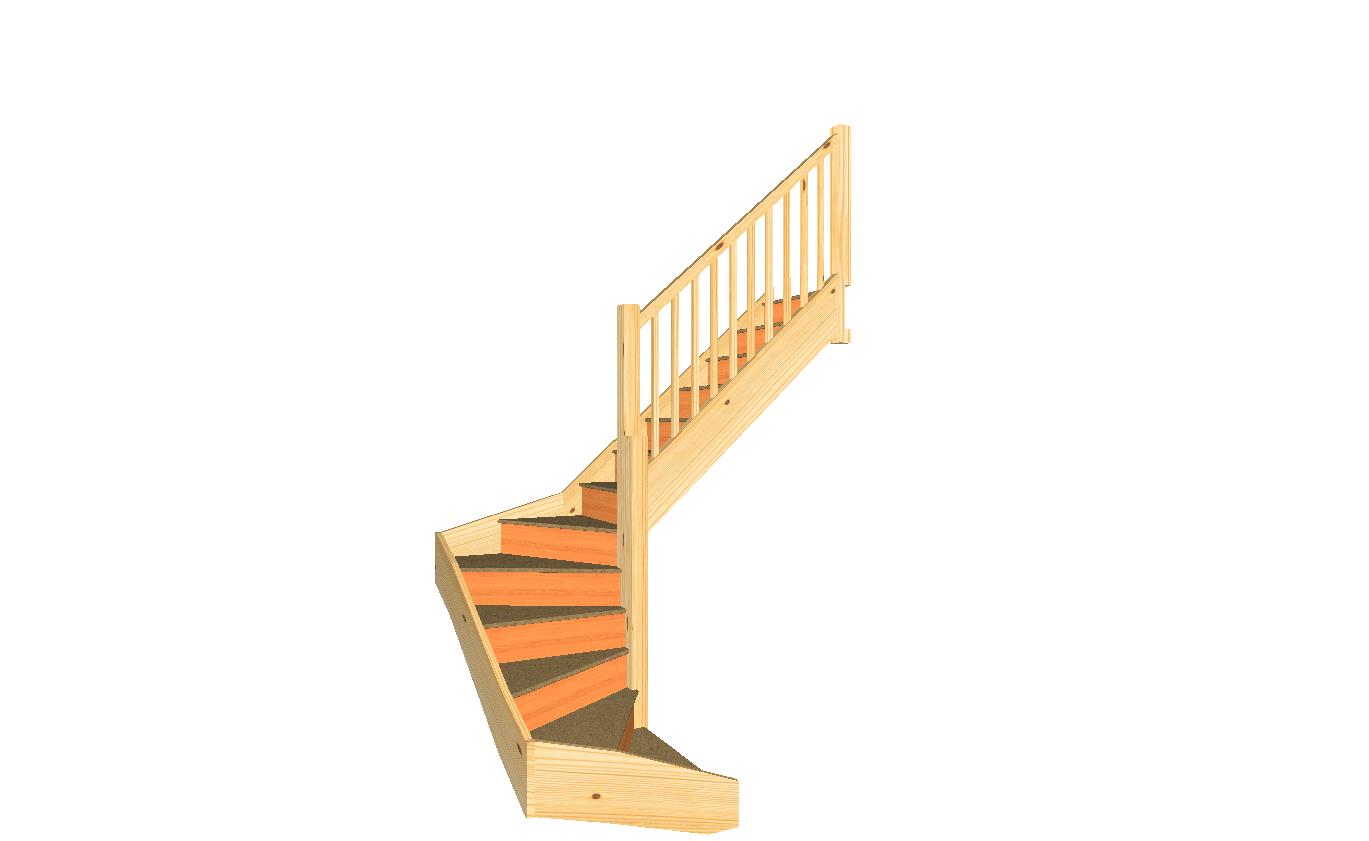

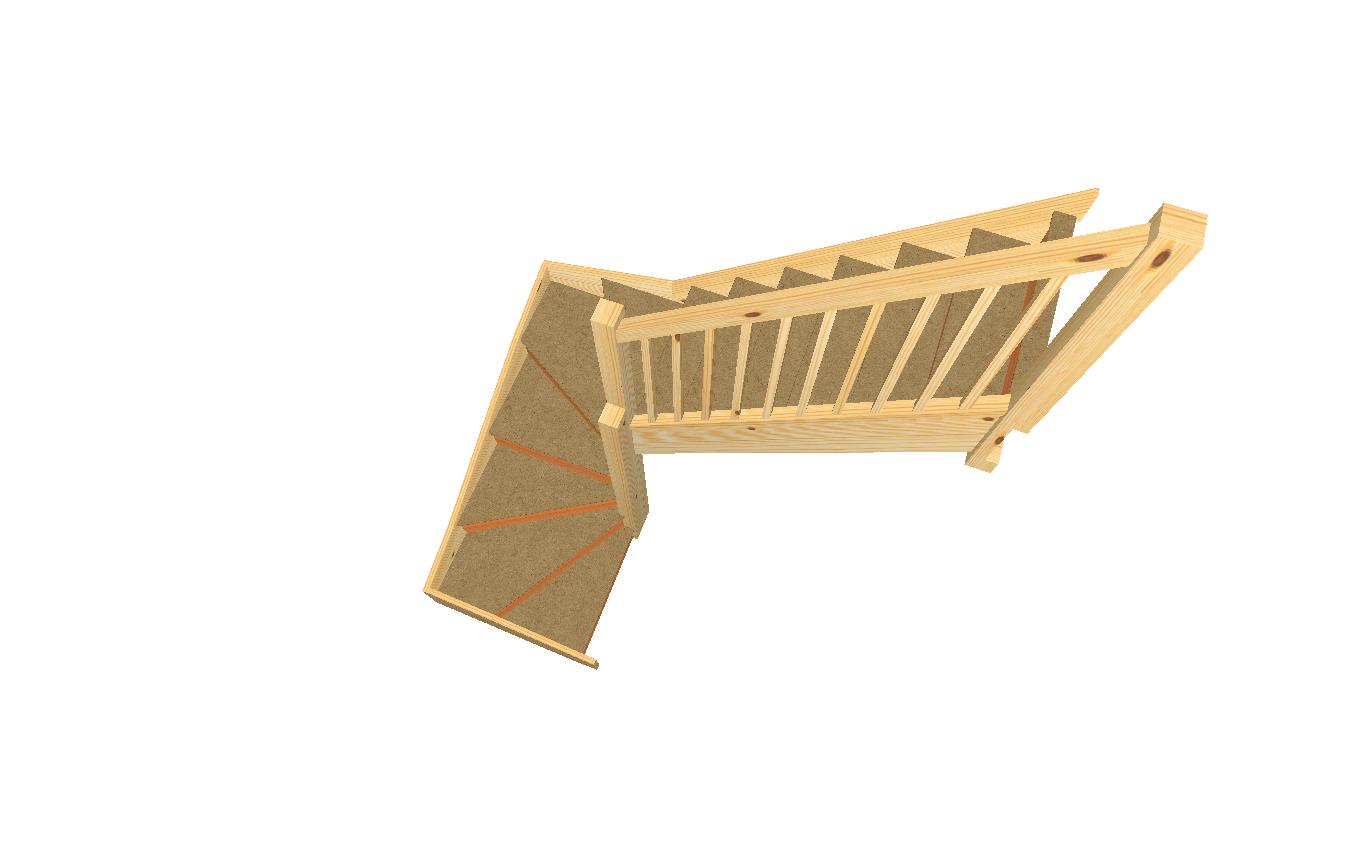

The SW3W36N Right-Hand Winding Staircase with Handrails is a compact double winder staircase with balustrade, designed for projects where space is restricted but a full turning staircase is required. Featuring a continuous 6-tread winding section, this layout provides a smooth change in direction while keeping the overall footprint compact.

This right-hand configuration turns to the right as you ascend and is supplied with a full balustrade, providing edge protection and improved safety for open stairwells. It is well suited to domestic staircases, loft conversions, and restricted floor plans where a straight or half-landing staircase is not practical.

Manufactured as part of our Trade Range, the SW3W36N offers a practical and cost-effective winding staircase solution. When designed correctly, this layout can work within either a rectangular stairwell opening or an L-shaped stairwell opening, depending on available space and headroom requirements.

As with all winding staircases, headroom, pitch, and going dimensions must be carefully assessed. While this layout is commonly used in domestic applications, final compliance with UK Building Regulations must always be confirmed at the design stage using full site-specific information.

🔑 Key Characteristics

• 13 risers total

• 6 tread continuous winding section

• Compact turning footprint

• Supplied with balustrade

• Right-hand turn (ascending)

• Suitable for domestic installations

🧱 Stairwell Opening & Headroom Guidance

This double winder staircase with balustrade can be accommodated within a rectangular stairwell opening in some situations. However, where headroom is restricted, an L-shaped stairwell opening may be required to achieve the required 2.0 m headroom under UK Building Regulations.

Final suitability should always be confirmed during the design stage, taking into account floor-to-floor height, stair pitch, and the position of the winders.

📐 Specification Overview

• Model: SW3W36N

• Turn Direction: Right-Hand

• Risers: 13

• Winder Treads: 6

• Handrails / Balustrade: Included

• Stair Type: Winding staircase / double winder staircase

• Use: Domestic staircases, loft conversions, restricted stairwells
