Craftsmans Pine Wooden Staircase – Left-Hand Top Winder with Handrail (S9W3N)

A left-hand wooden staircase made to measure in Craftsmans Pine

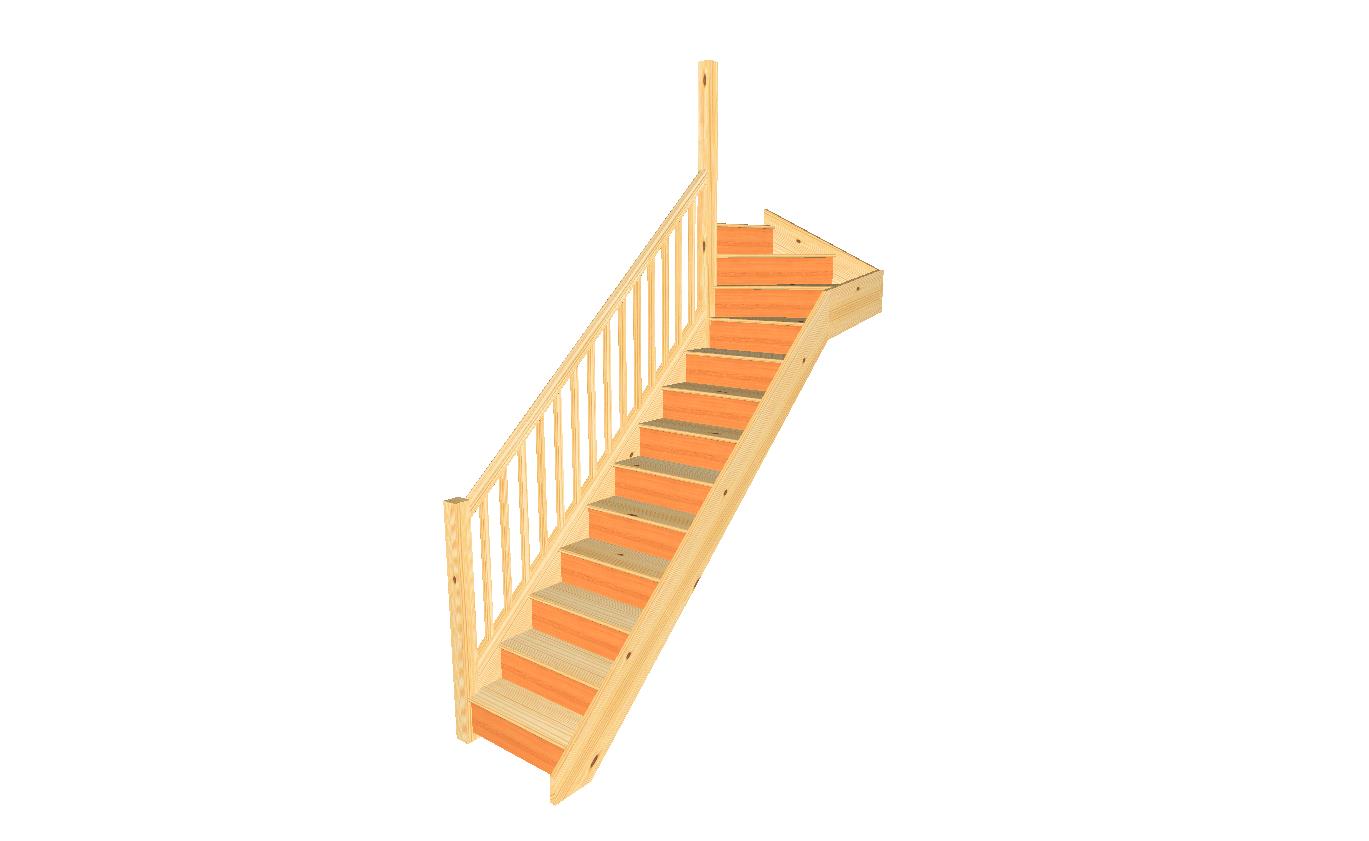

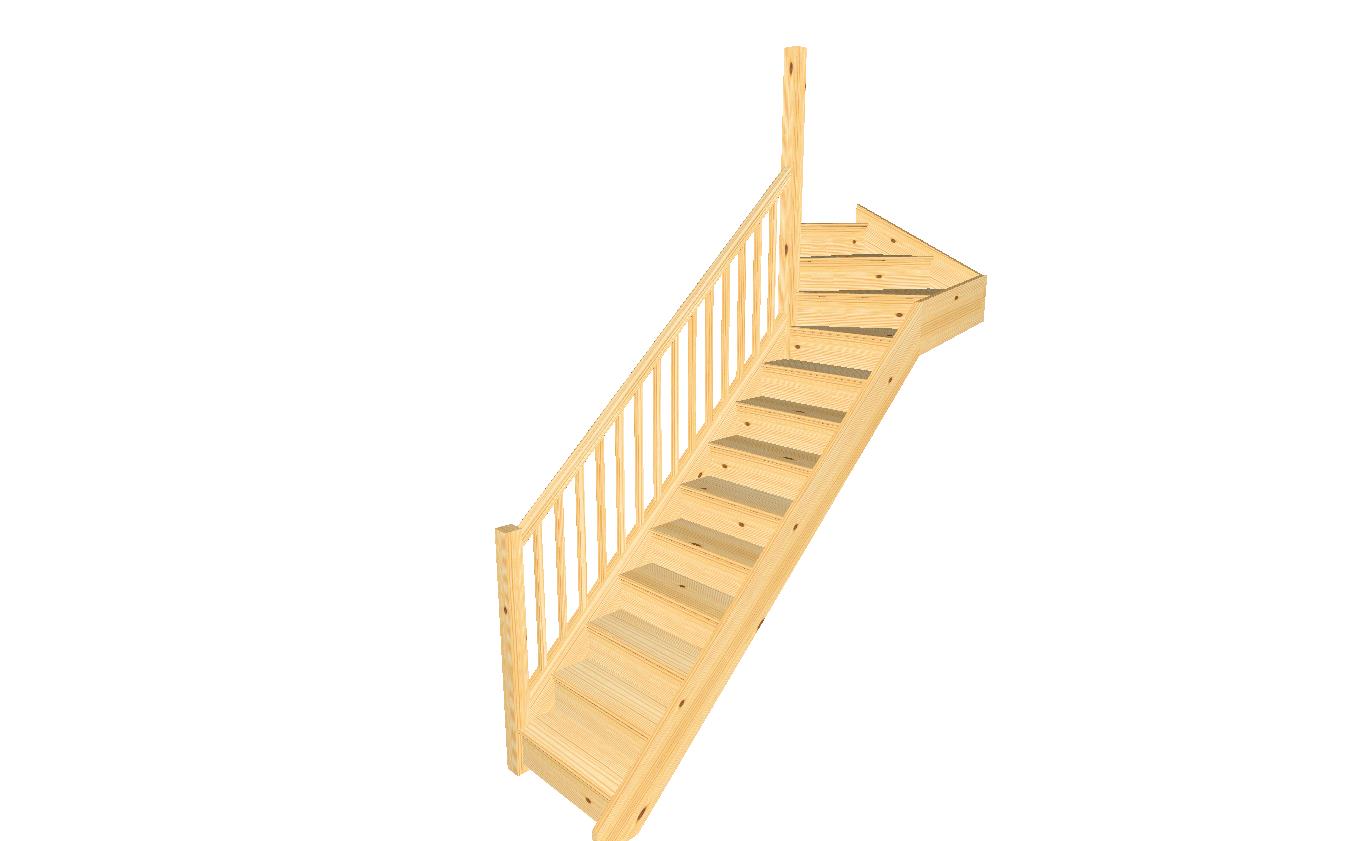

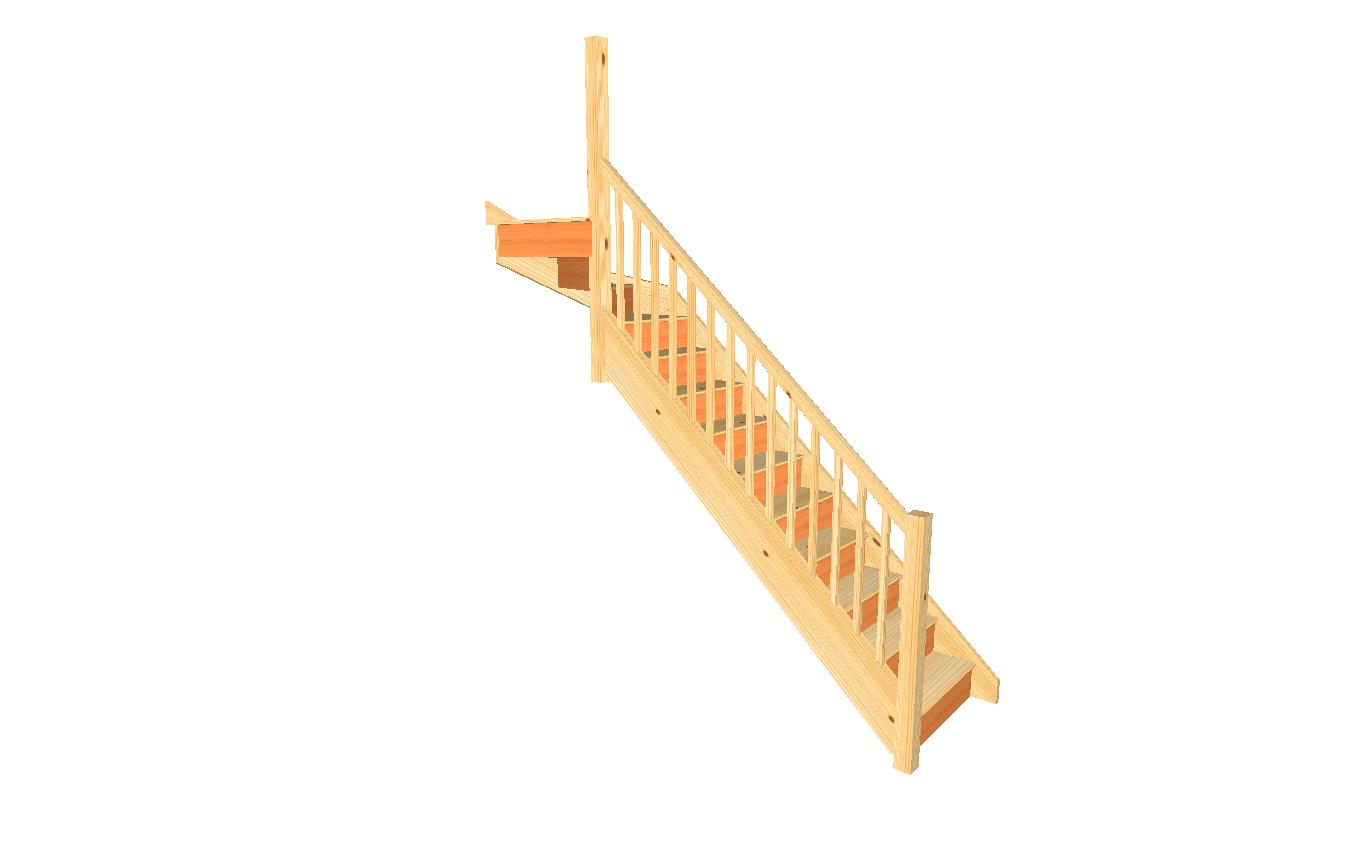

This left-hand top winder wooden staircase turns neatly onto the landing with a kite step at the head of the flight—ideal where space is tight but you want the warmth and workability of real wood. Built in Craftsmans Pine, it includes a matching handrail and balustrade for a complete, ready-to-install solution.

Sizing & layout

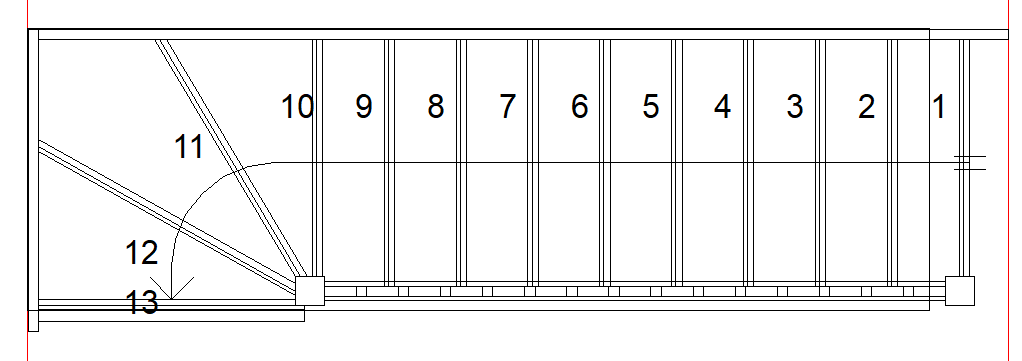

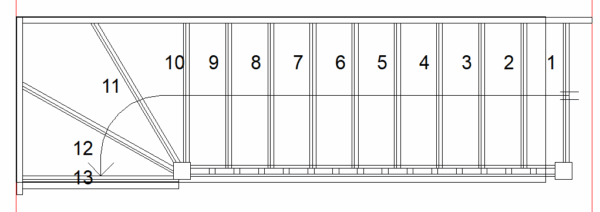

• Configuration: Left-hand top winder (S9W3N)

• Total rise: typically 2500–2860 mm across 13 risers

• Overall width (strings): usually 660–1000 mm

• Pitch target: ≤ 42° to align with Building Regulations Part K

• Goings: calculated from your chosen rise; 2R+G guidance shown during configuration

Timber specification

• Strings: 32 mm EdgeLam Engineered Pine

• Treads: 22 mm EdgeLam Pine

• Risers: 12 mm plywood as standard (upgrade to 18 mm pine for an all-timber build)

• Newel posts: 90×90 mm Pine Square

• Balusters: 32 mm Pine Square

• Handrail/Baserail: Pine STHR/STBR profiles

What’s supplied

• Face-side strings tenoned ready for newels

• Newels morticed for strings and handrail

• Handrail & baserail pre-cut; balusters pre-cut; fillets supplied oversize

• Newel caps available separately

Compliance & guidance

The flight is designed to help you achieve Part K (England & Wales). Final compliance depends on installed rise/going and headroom on site. Our product calculator flags pitch, 2R+G and walk-line to keep your selection on target.

Best for

Refurbishments and new builds seeking a made-to-measure wooden staircase with a compact left-hand top winder and a complete pine balustrade—durable, installer-friendly and easy to finish.
