Craftsmans Pine Straight Flight of Stairs — 16 Risers (No Handrails)

Overview

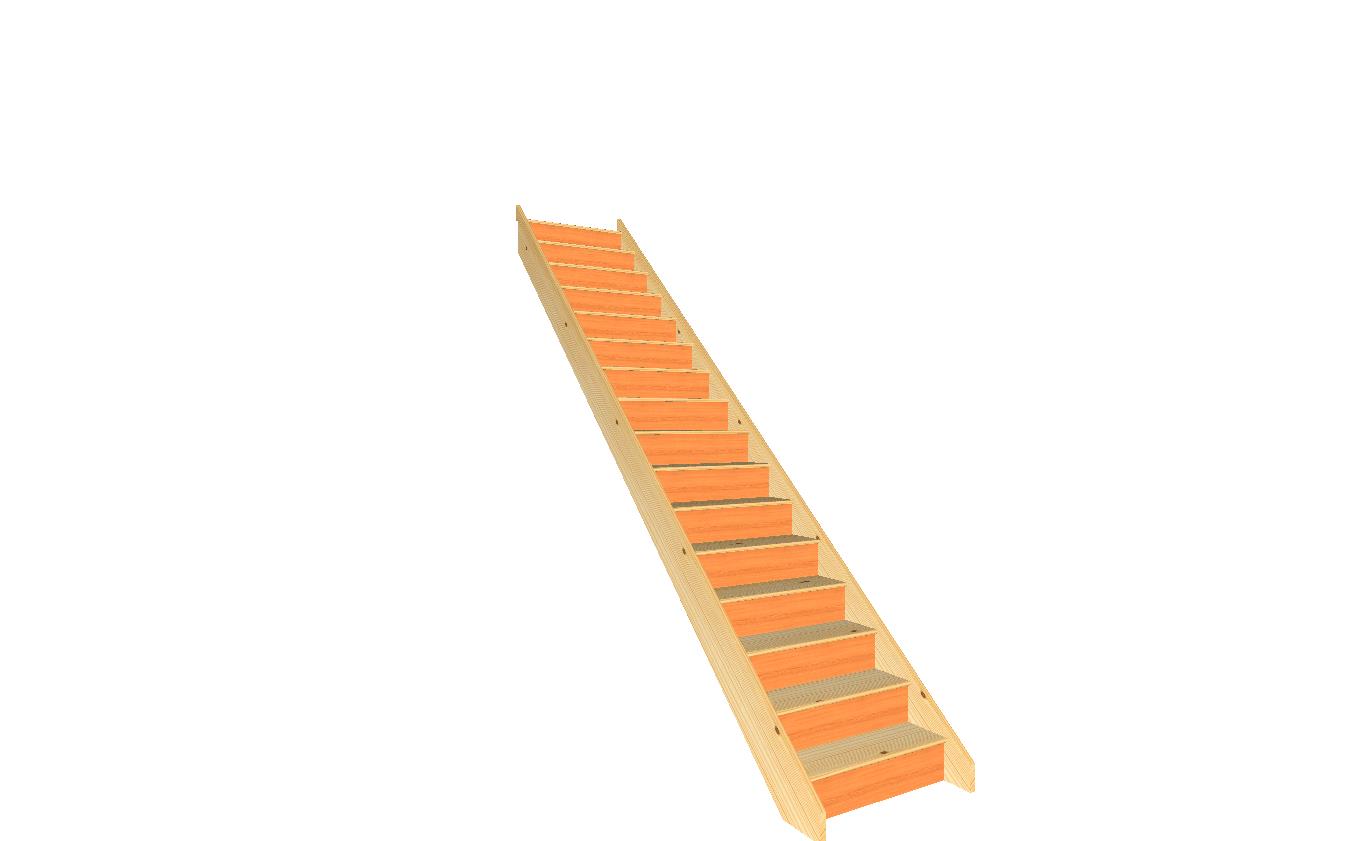

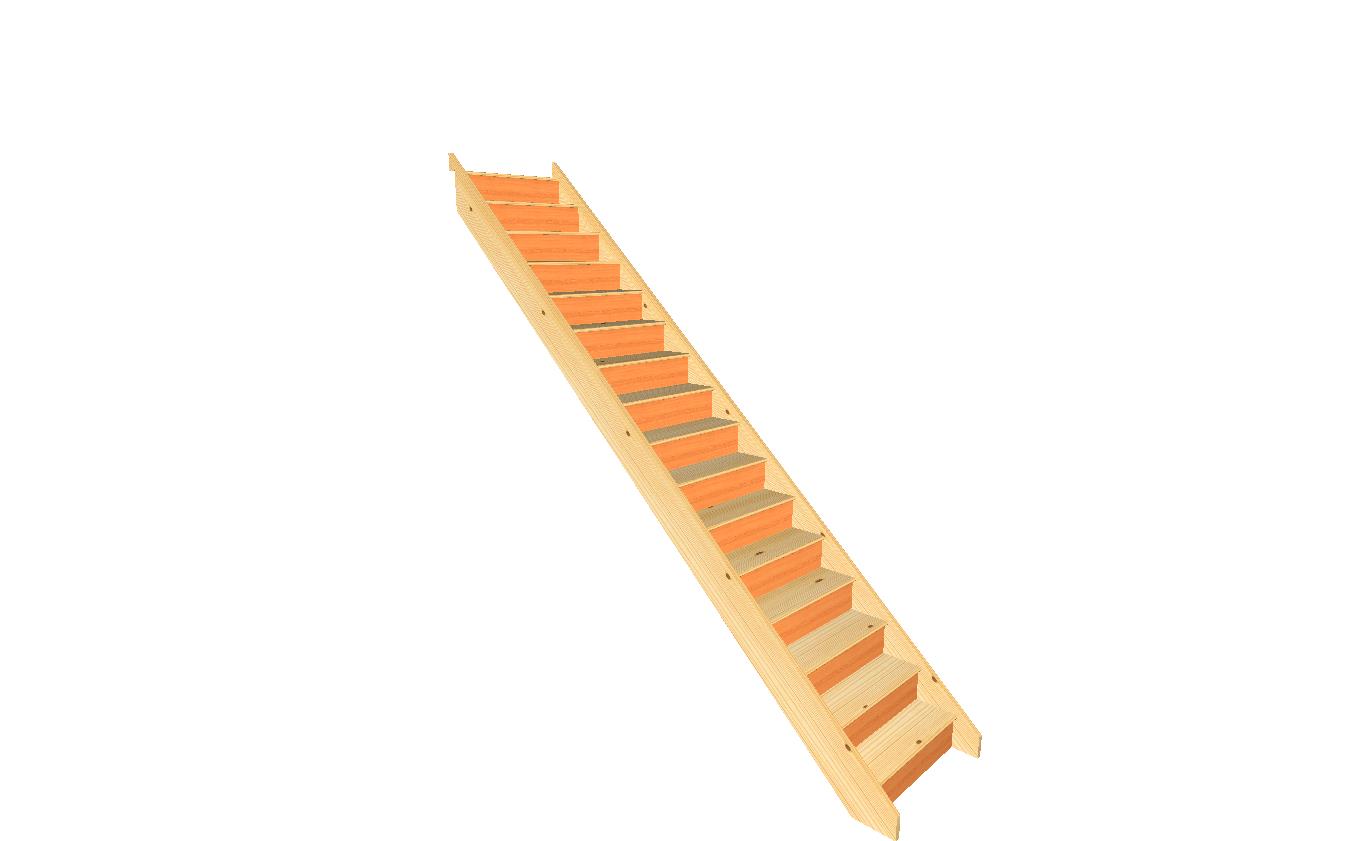

The Craftsmans Pine 16-Riser Straight Flight of Stairs is a full-length wooden staircase designed for taller storey heights from 3072 mm to 3520 mm.
Manufactured in-house from sustainable EdgeLam Pine, it offers durability and precision while maintaining a traditional straight-flight layout.
This model is supplied without handrails — perfect when wall-mounted rails or custom balustrades will be added later.

Note: Due to its overall length, the 16-riser staircase is usually delivered in two sections with strings jointed in length for transport and safe handling.

Key Features

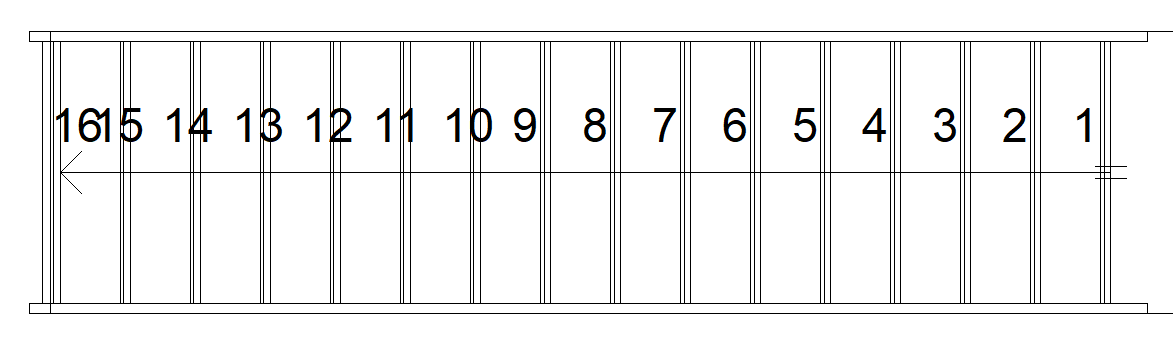

• 16 risers — straight flight for 3072–3520 mm floor-to-floor

• No handrails (flight only)

• Strings: 32 mm EdgeLam Pine (standard)

• Treads: EdgeLam Pine — strong and smooth-sand finish

• Risers: 12 mm plywood (standard) or EdgeLam Pine upgrade (+£160)

• Width range: 600–1000 mm (adjustable in 5 mm steps)

• Going: automatically calculated to meet ≤ 42° pitch, or set manually

• Comfort band: live 2R + G reading (550–700 mm)

• Headroom tool: interactive visual check for ≥ 2000 mm clearance

• Build options: Assembled or Flatpack

• Crafted in the UK by Stairplan — specialists in quality wooden staircases

Optional Upgrades & Surcharges

• EdgeLam Pine risers: +£10 × 16 risers = £160

• Width surcharges: for 901–950 mm and 951–1000 mm widths

• Going surcharges: for larger goings (241–250 mm)

• White Primed strings (27 mm): +£18 over standard Pine

Compliance & Comfort

• Pitch: auto-limited to ≤ 42° per UK domestic standards

• Going: always ≥ 220 mm

• Comfort ratio (2R + G): guided between 550–700 mm

• Headroom: recommended minimum 2000 mm checked live

What’s Included

• Complete 16-riser straight flight

• Strings, treads, risers and fixings (Fixings for assembly only as per flatpack selected build option)

• Assembly or Flatpack (your choice)

Not included: handrails, balusters, landing balustrade, newel caps, surface finish or on-site fitting.

Delivery

Delivered kerbside using Stairplan’s dedicated transport.
This longer flight is often supplied in two joined sections; please ensure two or more persons are available to assist with safe unloading.

⚙️ Tech Specs (Quick Reference)

💬 FAQs

Will the staircase arrive in one piece?
No, this 16-riser wooden staircase is generally split into two joined sections to make delivery and installation manageable.

Is it suitable without handrails?
The flight can be installed against a wall or with separate balustrade packages. Regulations normally require at least one handrail — please verify your project’s compliance.

Can I adjust the going?
Yes. The configurator calculates an automatic going to stay within the 42° rule, but you can override manually. The live display updates the pitch and 2R + G comfort band instantly.

Does it meet UK Building Regulations Part K?
Yes, the configurator continuously checks the 42° pitch and 2R + G guidance values, ensuring domestic Part K compliance.

How do I confirm headroom?
Use the headroom checker in the configurator — input your stairwell opening and ceiling height to verify at least 2000 mm clearance.
