S2W3W34N Winder Staircase – Right-Hand (No Handrails)

S2W3W34N – Right-Hand Double Winder Staircase (No Handrails) | Trade Range

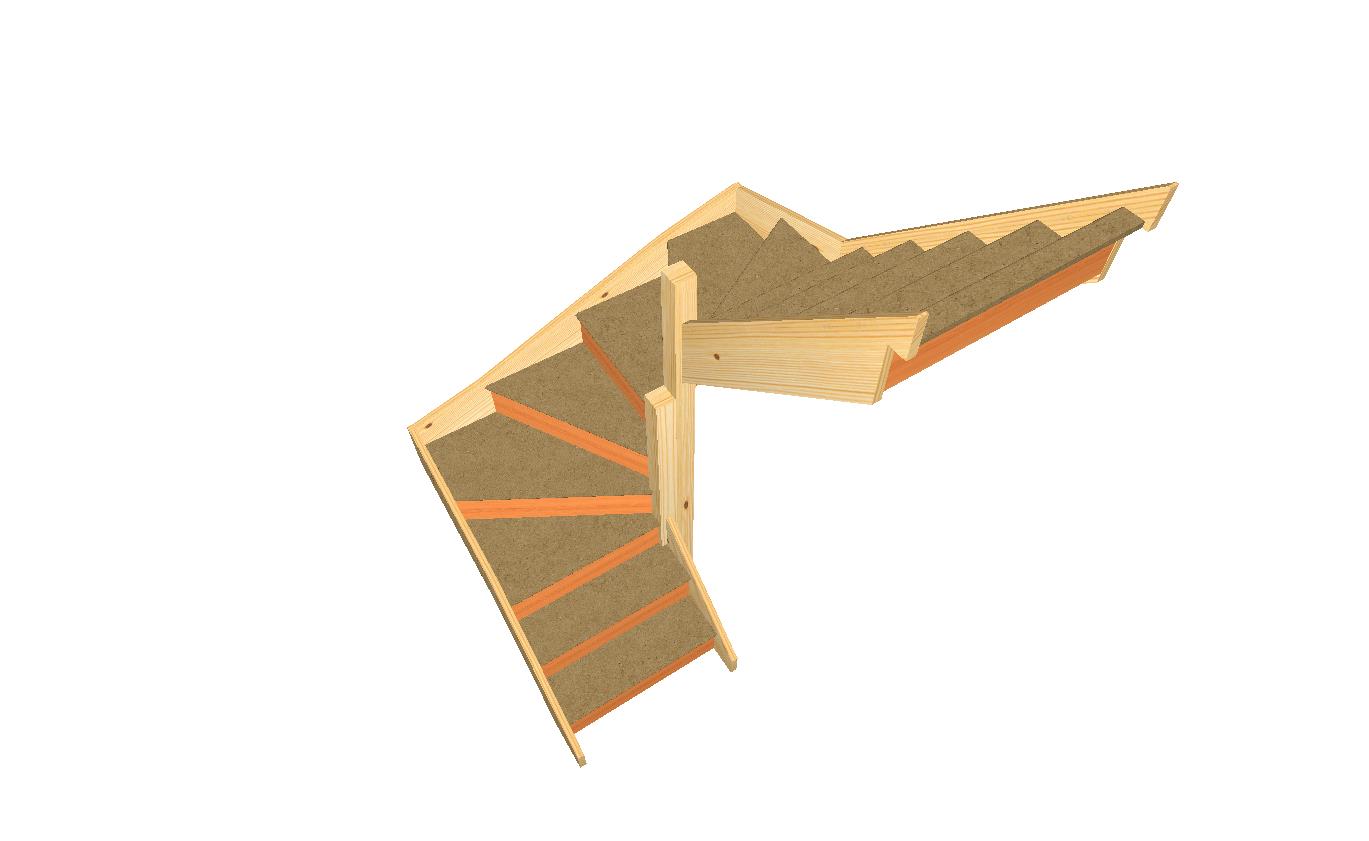

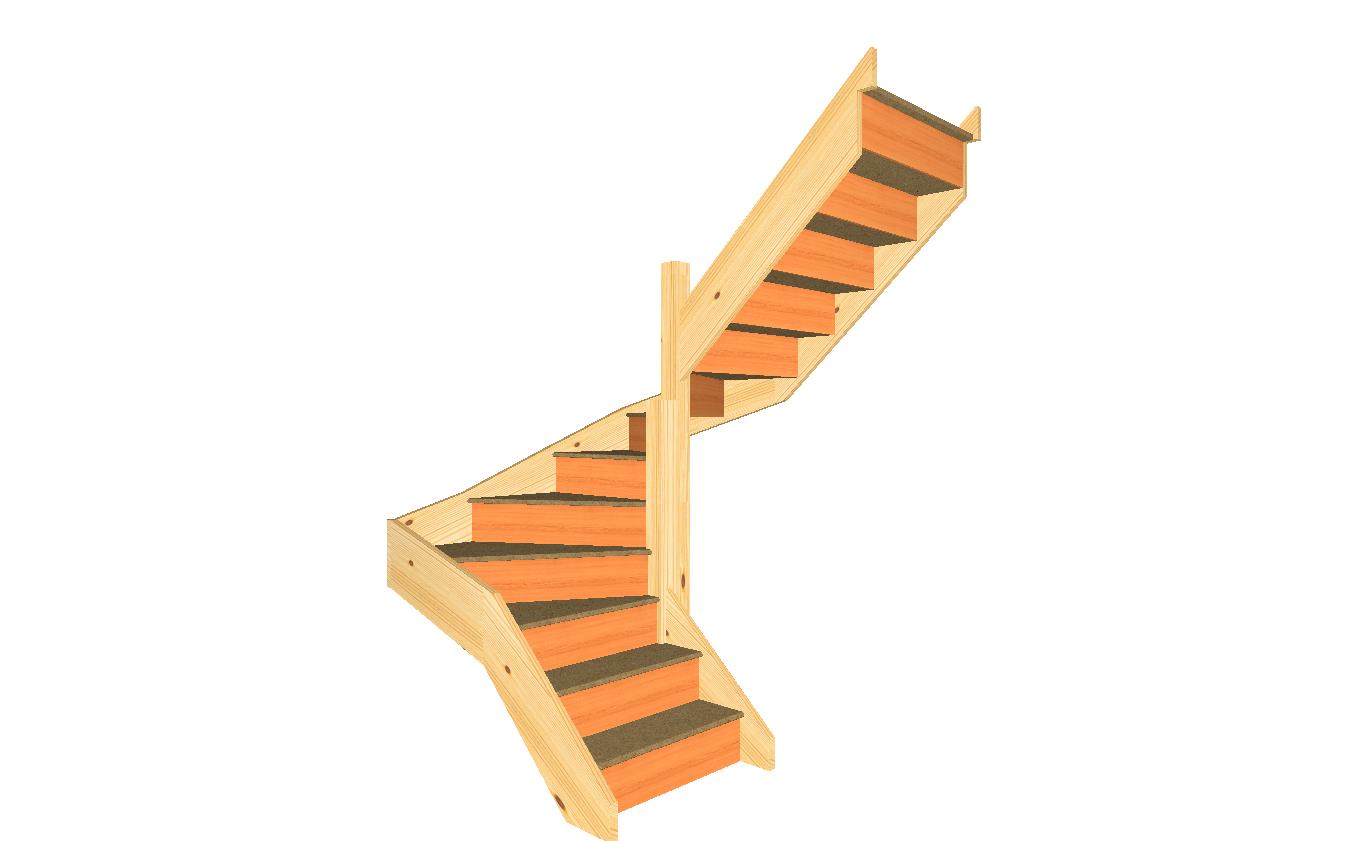

The S2W3W34N Right-Hand winder staircase is designed for installations where space efficiency is critical but stair comfort and proportion still matter. With two goings before the turn and four goings after, this layout offers a balanced double-winder configuration that suits a wide range of domestic projects.

This version turns to the right as you ascend and is supplied without handrails, making it ideal for stairwells where the stair is enclosed by walls or where bespoke balustrade components will be added separately.

Configured to suit your project

Rather than relying on fixed dimensions, the staircase is configured online:

• Choose your total floor-to-floor rise

• Select the overall width over the strings

• The configurator calculates:

  • Individual rise height

  • Stair going

  • Pitch angle

  • Entry length, centre run (Run B), and exit length

All values are displayed in a live Calculated Summary, allowing you to check layout suitability before committing to manufacture.

Key characteristics

• Model: S2W3W34N

• Turn direction: Right-Hand (RH)

• Handrails: Not included

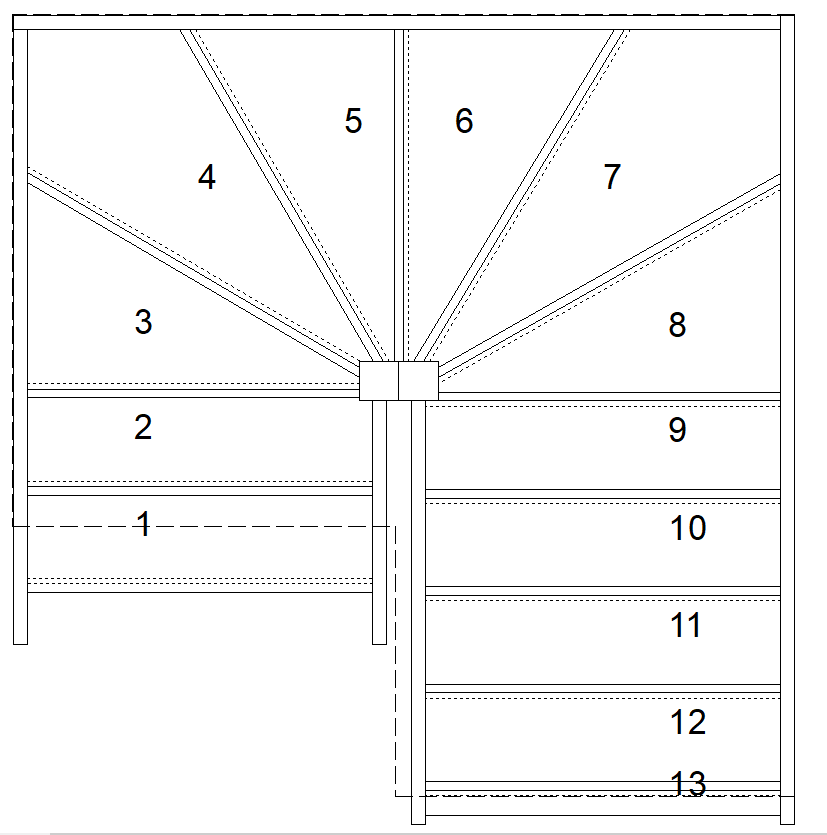

• Risers: 13

• Total rise range: 2500–2860mm

• Width range (over strings): 600–1000mm

• Layout intent: Balanced double-winder with extended exit run

• Pitch guidance: Calculated to target ≤ 42°, with manual going override available where required

Supplied as a staircase kit

The staircase is manufactured to the configured dimensions shown at checkout. All calculated details are carried through to the order confirmation, providing clarity for manufacture, delivery, and installation.

If you require a version with handrails, please select the appropriate S2W3W34N With Handrail product.

Key specifications (for a specs table or bullet list)

• Stair type: Double winder

• Layout code: S2W3W34N

• Direction: Right-Hand

• Handrails: Not included

• Number of risers: 13

• Total rise: 2500–2860mm

• Stair width: 600–1000mm

• Calculated outputs shown:
  Entry length · Run B length · Exit length · Pitch · Going · Individual rise
