S4W3W32N – Right-Hand 6-Tread Winder / Winding Staircase (With Handrail & Balustrade)

S4W3W32N – Right-Hand 6-Tread Winder / Winding Staircase with Handrail & Balustrade | Trade Range

The S4W3W32N Right-Hand staircase is a Trade Range winding staircase that turns through a full 180 degrees using a 6-tread double winder configuration. With four winder treads before the turn and two after, this layout reverses direction smoothly within a compact footprint, making it ideal where space is limited but stair comfort remains important.

Turning to the right as you ascend, this version is supplied with a handrail and balustrade, providing a complete solution for open stairwells where safety, edge protection, and visual continuity are required.

Important stairwell opening & headroom requirement

Due to the geometry of this 6-tread winder staircase, a simple rectangular stairwell opening will not provide sufficient headroom.

To achieve the recommended 2.0m headroom, the stairwell opening must be formed as an L-shaped opening, following the direction of the stair as it winds through the 180-degree turn. This should be allowed for at the design stage to ensure the staircase can be installed correctly.

If you are unsure whether your opening is suitable, please contact us before ordering.

Bullnose tread shown in images

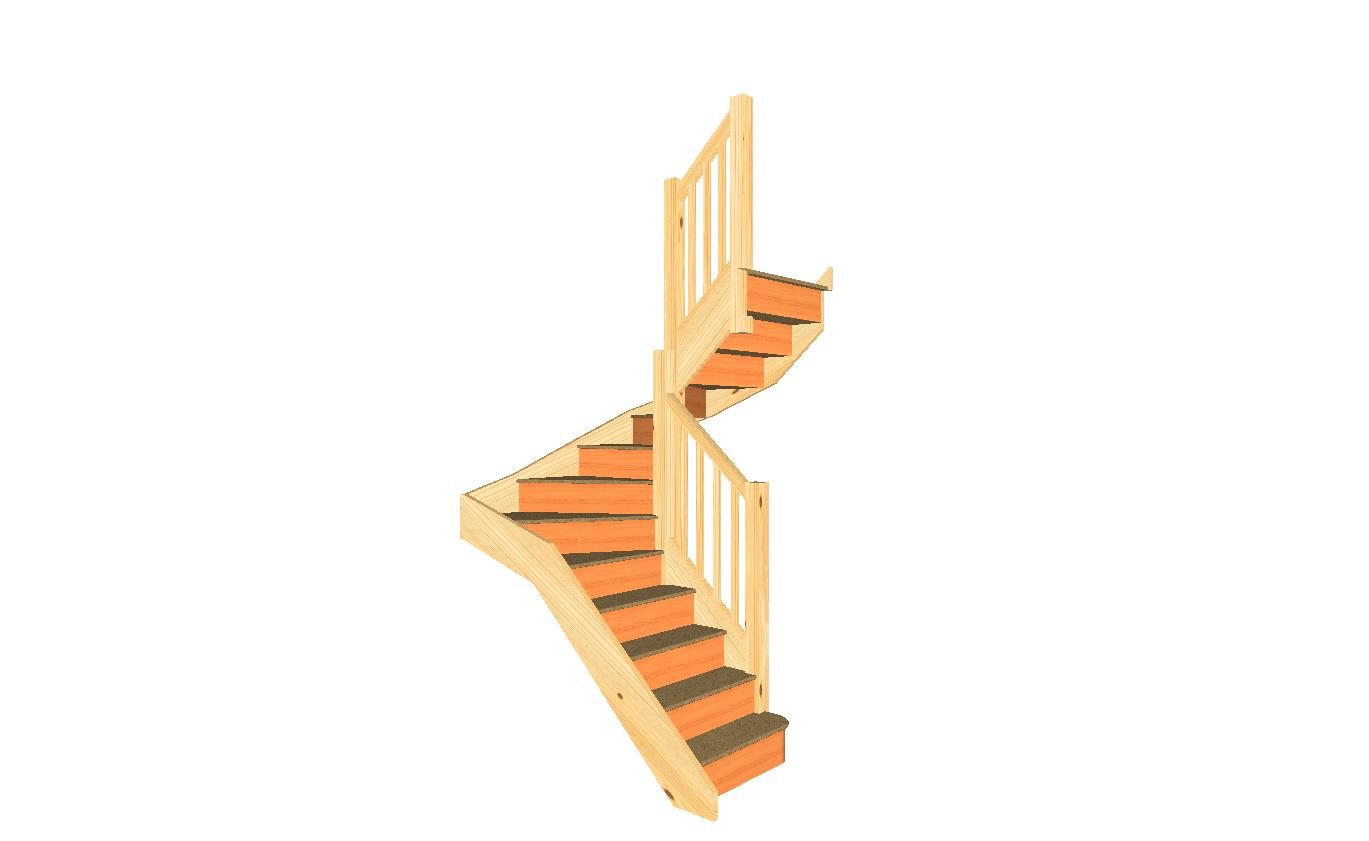

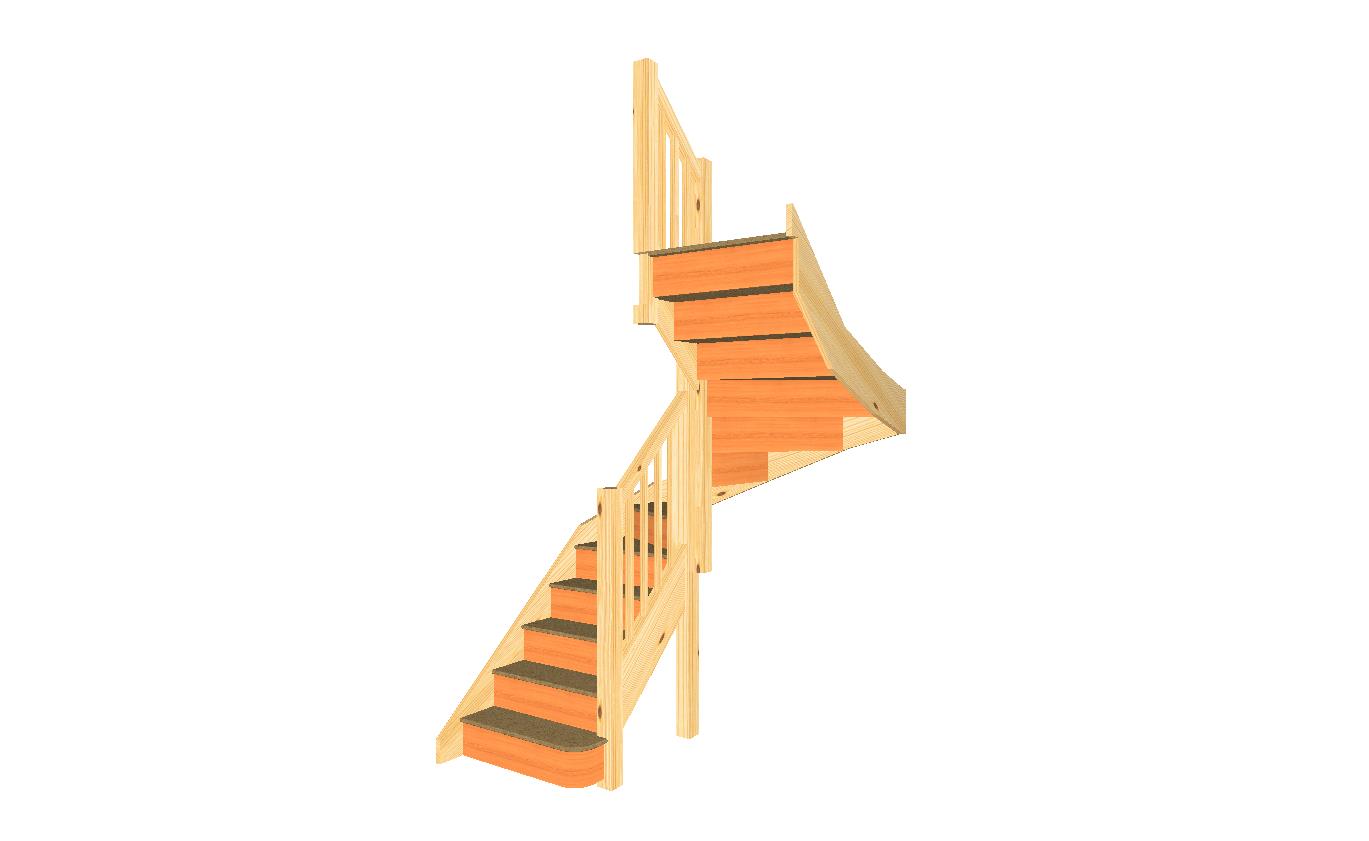

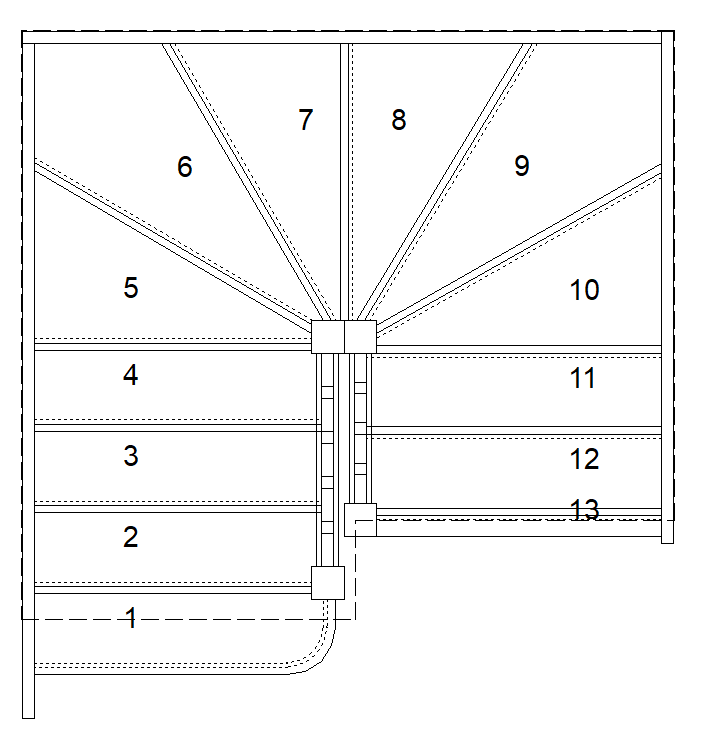

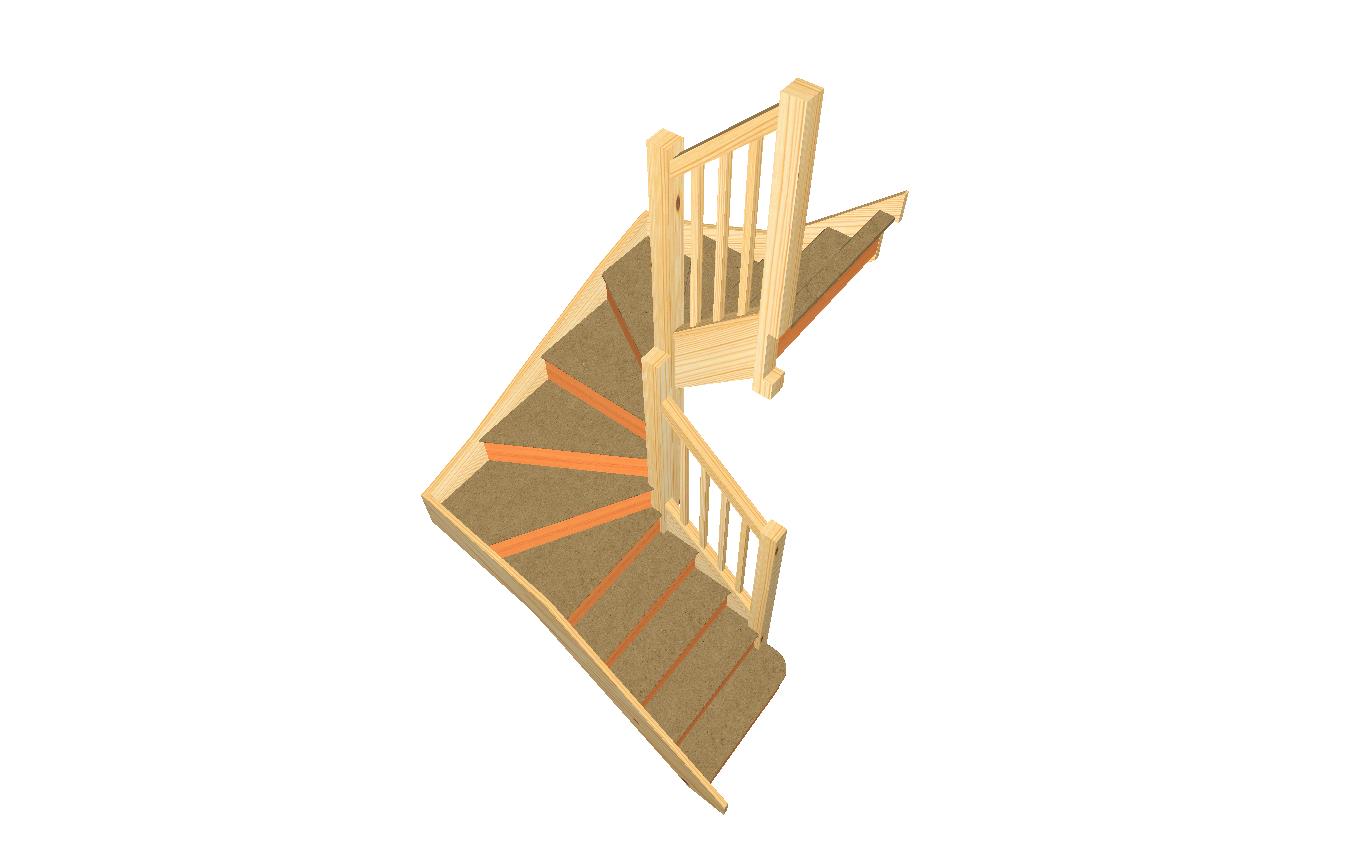

The images and drawings shown for this product illustrate the staircase with an optional bullnose entry tread.
The bullnose tread is optional and can be selected where a more elegant and welcoming start to the winding staircase is desired.

Configure to suit your project

This winding staircase is configured online rather than supplied in fixed sizes:

• Select your total floor-to-floor rise

• Choose the overall width over the strings

• The configurator calculates in real time:

  • Individual rise height

  • Stair going

  • Pitch angle

  • Entry length, centre run (Run B), and exit length

All calculated values are displayed in a live Calculated Summary, allowing you to confirm proportions, footprint, and compliance guidance before placing your order.

Key characteristics

• Model: S4W3W32N

• Stair type: Winding staircase / 6-tread double winder (180° turn)

• Turn direction: Right-Hand (RH)

• Handrail & balustrade: Included

• Risers: 13

• Total rise range: 2500–2860mm

• Width range (over strings): 600–1000mm

• Stairwell opening: L-shaped opening required for 2.0m headroom

• Optional feature shown: Bullnose entry tread

• Pitch guidance: Calculated to target ≤ 42°, with optional manual going override

Supplied as a complete staircase kit

The staircase is manufactured to the configured dimensions shown at checkout and supplied with the selected handrail and balustrade components. All calculated values are carried through to the cart and order confirmation, ensuring clarity for manufacture and installation.

Key specifications (for a specs section)

• Stair type: Winding staircase (6-tread double winder / 180° turn)

• Layout code: S4W3W32N

• Direction: Right-Hand

• Handrail & balustrade: Included

• Number of risers: 13

• Total rise: 2500–2860mm

• Stair width: 600–1000mm

• Stairwell opening: L-shaped opening required

• Optional feature shown: Bullnose entry tread

• Calculated outputs shown:
  Entry length · Run B length · Exit length · Pitch · Going · Individual rise
