S5W3W31N – Right-Hand Kite Winding Staircase (With Handrails & Balustrade)

S5W3W31N – Right-Hand Kite Winding Staircase with Handrail & Balustrade | Trade Range

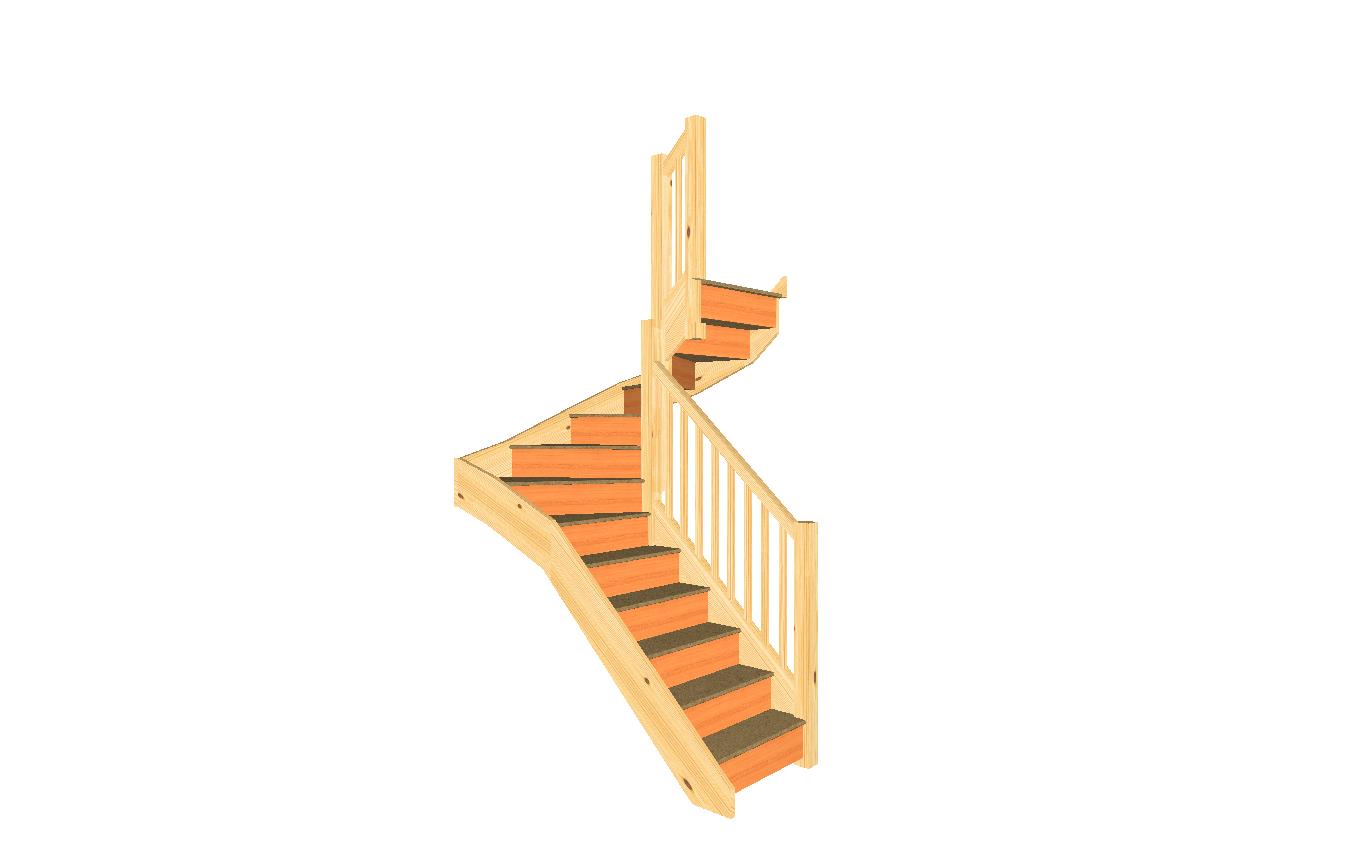

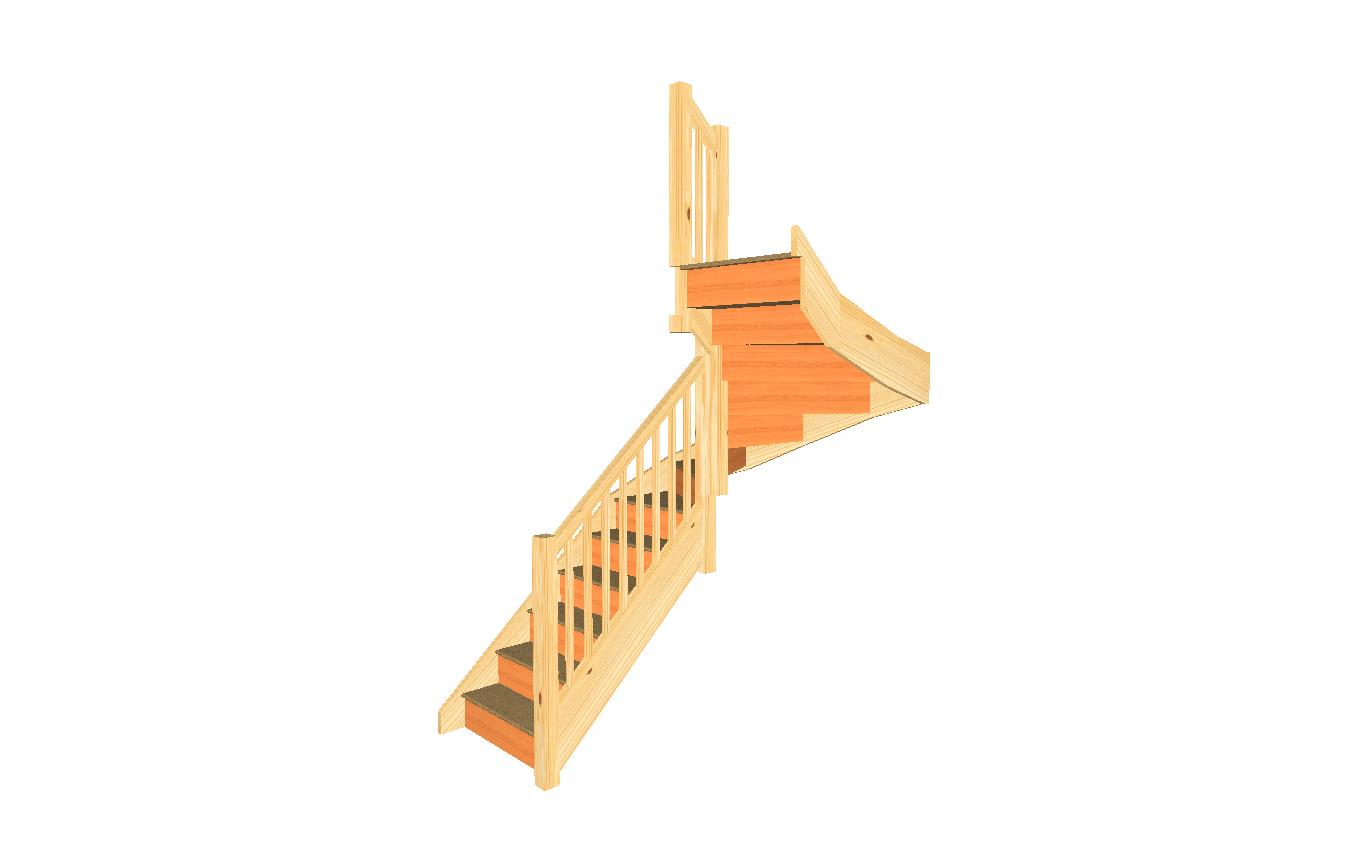

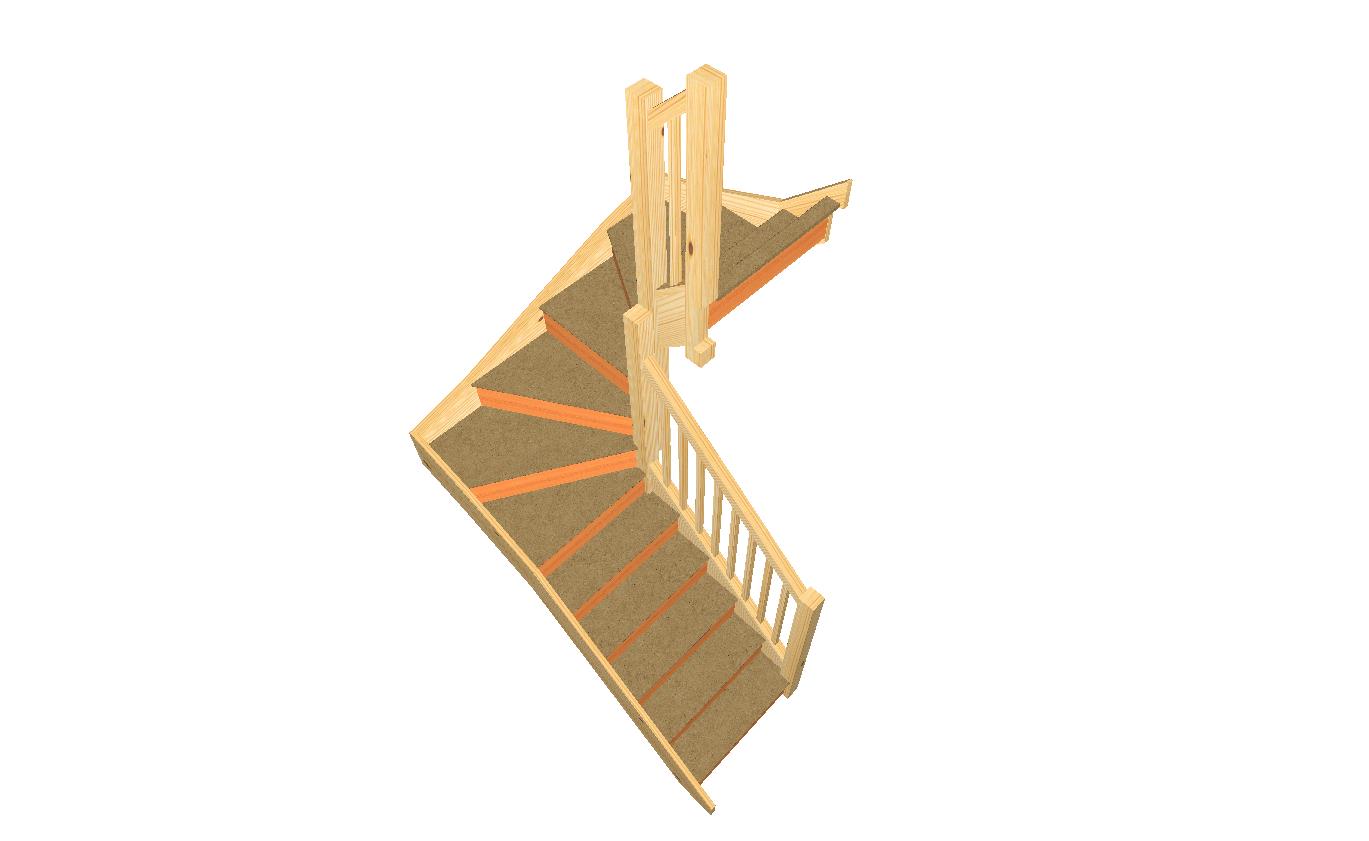

The S5W3W31N Right-Hand staircase is the most compact winding staircase layout within the Trade Range and is commonly referred to as a kite winding staircase due to the shape and progression of the winder treads through the turn.

Using five winder treads before the turn and one after, this configuration concentrates the change of direction into the winder section itself, allowing the staircase to reverse direction within an extremely limited footprint. This makes it ideal for challenging layouts where space is severely restricted and a standard winder or landing staircase will not fit.

Turning to the right as you ascend, this version is supplied with handrail and balustrade, providing a complete solution for open stairwells where safety, edge protection, and visual continuity are required.

Important stairwell opening & headroom guidance

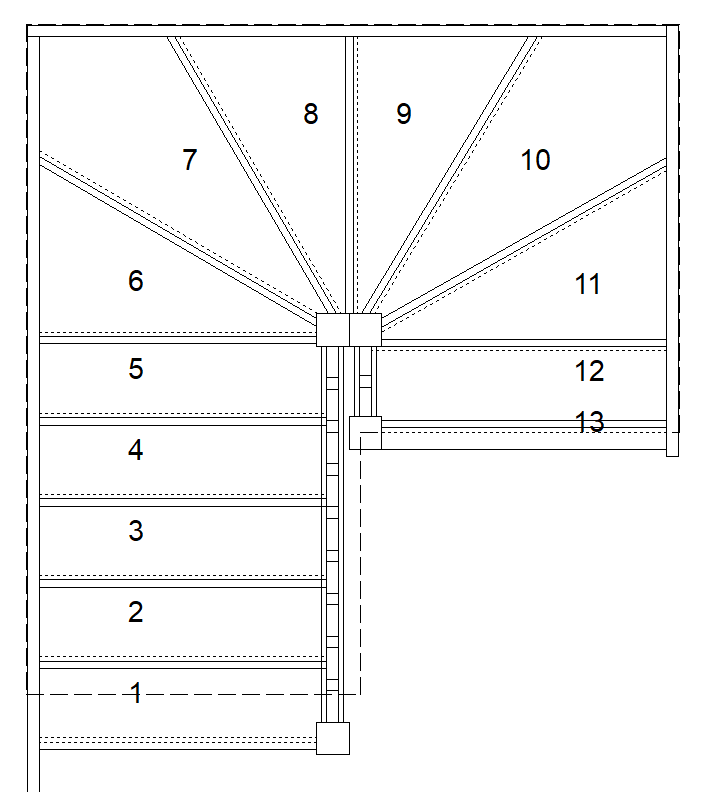

With this tight kite winding staircase layout, the shape of the stairwell opening has a direct impact on headroom:

• A rectangular stairwell opening can be used

• However, to achieve the recommended 2.0m headroom, an L-shaped stairwell opening is required, extending in the direction of the staircase as it winds

The L-shaped opening provides additional clearance above the winder treads, where headroom is most restricted. This should be allowed for at the design stage to avoid issues during installation.

If you are unsure whether your stairwell opening is suitable, please contact us before ordering.

Configured to suit your project

This kite winding staircase is configured online rather than supplied in fixed sizes:

• Select your total floor-to-floor rise

• Choose the overall width over the strings

• The configurator calculates in real time:

  • Individual rise height

  • Stair going

  • Pitch angle

  • Entry length, centre run (Run B), and exit length

All calculated values are displayed in a live Calculated Summary, allowing you to assess proportions, footprint, and compliance guidance before purchase.

Key characteristics

• Model: S5W3W31N

• Stair type: Kite winding staircase / compact winding staircase

• Turn direction: Right-Hand (RH)

• Handrail & balustrade: Included

• Risers: 13

• Total rise range: 2500–2860mm

• Width range (over strings): 600–1000mm

• Stairwell opening:

  • Rectangular opening possible

  • L-shaped opening required for 2.0m headroom

• Pitch guidance: Calculated to target ≤ 42°, with optional manual going override

Supplied as a complete staircase kit

The staircase is manufactured to the configured dimensions shown at checkout and supplied with the selected handrail and balustrade components. All calculated values are carried through to the order confirmation, ensuring clarity for manufacture, delivery, and installation.

If you require this layout without handrails, please select the appropriate S5W3W31N No Handrails product.
